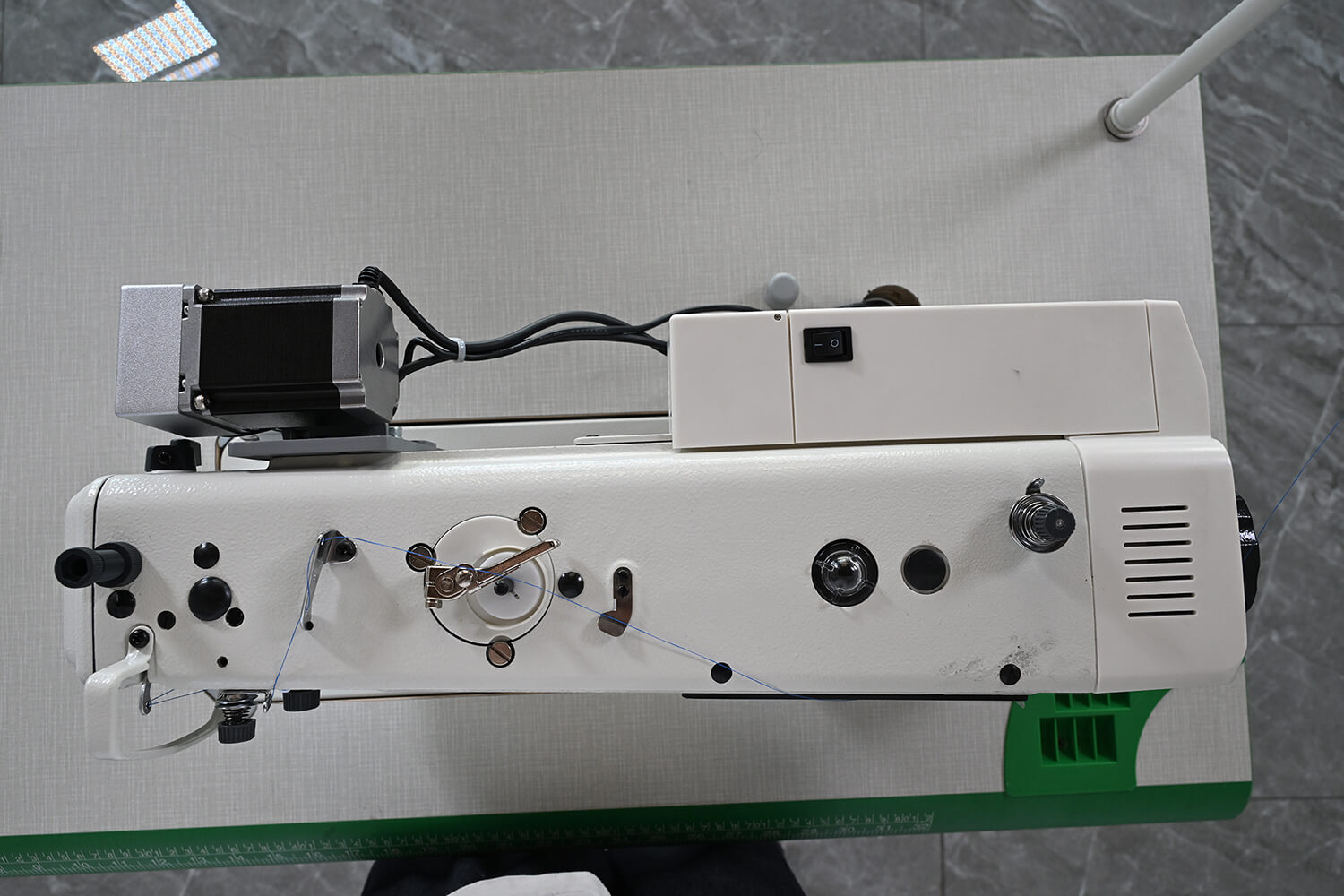

MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller

Product Advantages

All-wheel-drive intelligent digital puller featuring high-speed synchronization with the sewing machine.
Independent brushed DC motor for raising and lowering the puller—convenient, simple, and cost-effective.
The puller can be lifted out of the way when not in use, without interfering with the sewing machine's normal functions.
Traction force is 1.2 times that of standard digital pullers.
Simple structure; easy installation and after-sales service.

Product Details
Product Manual
Installation Video
Commissioning and Maintenance
Product Details

Product Video

📹 Product Showcase Video – MT Synchronization Effect Demonstration
📹 Product Demonstration Video – MT Sewing and Back-tacking Fully Synchronized
📹 Product Showcase Clip
📹 MT digital puller Promotional Video – Bilingual Subtitles

Application Video

📹 MT digital puller applied to suit manufacturing.
📹 MT digital puller used for shirt handling.
📹 MT digital puller Application
📹 MT digital puller-type Side-seaming Machine

Application Scenarios

Suitable for the sewing and feeding of fabrics for apparel, home textiles, furniture, luggage, and more.
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller
MT Brush-type Full-drive Intelligent Digital Puller

Compatible Models

Single/double-needle lockstitch machines, zigzag machines, coverstitch machines, compound-feed machines, feed-off-the-arm machines.

Product Features

The MT series features an intelligent, all-wheel-drive digital puller equipped with a brushed DC motor. It boasts a die-cast body and offers either a standalone display or an integrated digital control display; the motor operates quietly during engagement and disengagement. This unit effectively resolves issues such as uneven fabric feeding, difficulty navigating seams, fabric slippage, and layer misalignment, thereby significantly enhancing sewing quality and efficiency. It is suitable for fabric feeding and traction in the production of apparel, home textiles, furniture, and luggage, and is compatible with all sewing machines on the market.
Category
Model
Drive Method
Lifting Method
Pressure Adjustment
Lift Height
Max. Stitch Length
Max. Speed
Roller Width
Roller Traction Force
Voltage/Power
MT Fully-Driven Intelligent digital Puller
MTW/ J/P/T/S/I
Independent Stepper Motor
Motorized Lift (Brushed)
Adjustable Spring Mechanism
≤12mm (Operating)
≤12mm
6000 RPM
10-60mm
≤2Nm (Depending on configuration)
110-240V/120W


Product Manual
Installation Video
📹 MTPJ digital puller for Computerized Lockstitch Sewing Machine
📹 Installation of MTPJ digital puller on a Computerized Lockstitch Machine – Bilingual Subtitles
📹 Installation of MTT Flatcar puller
📹 MTWJ digital puller Installed on Computerized Lockstitch Sewing Machine
📹 MTWJ digital puller Installed on Computerized Lockstitch Sewing Machine
📹 MT Installation Video – English Audio – English Subtitles
📹 MT digital puller Heavy-Duty Installation Crane 900C
Maintenance and Commissioning
📹 MT: Replacing the presser foot lift motor
📹 MT connects to the automatic back-tacking thread.
📹 MT Maintenance Sub-board
