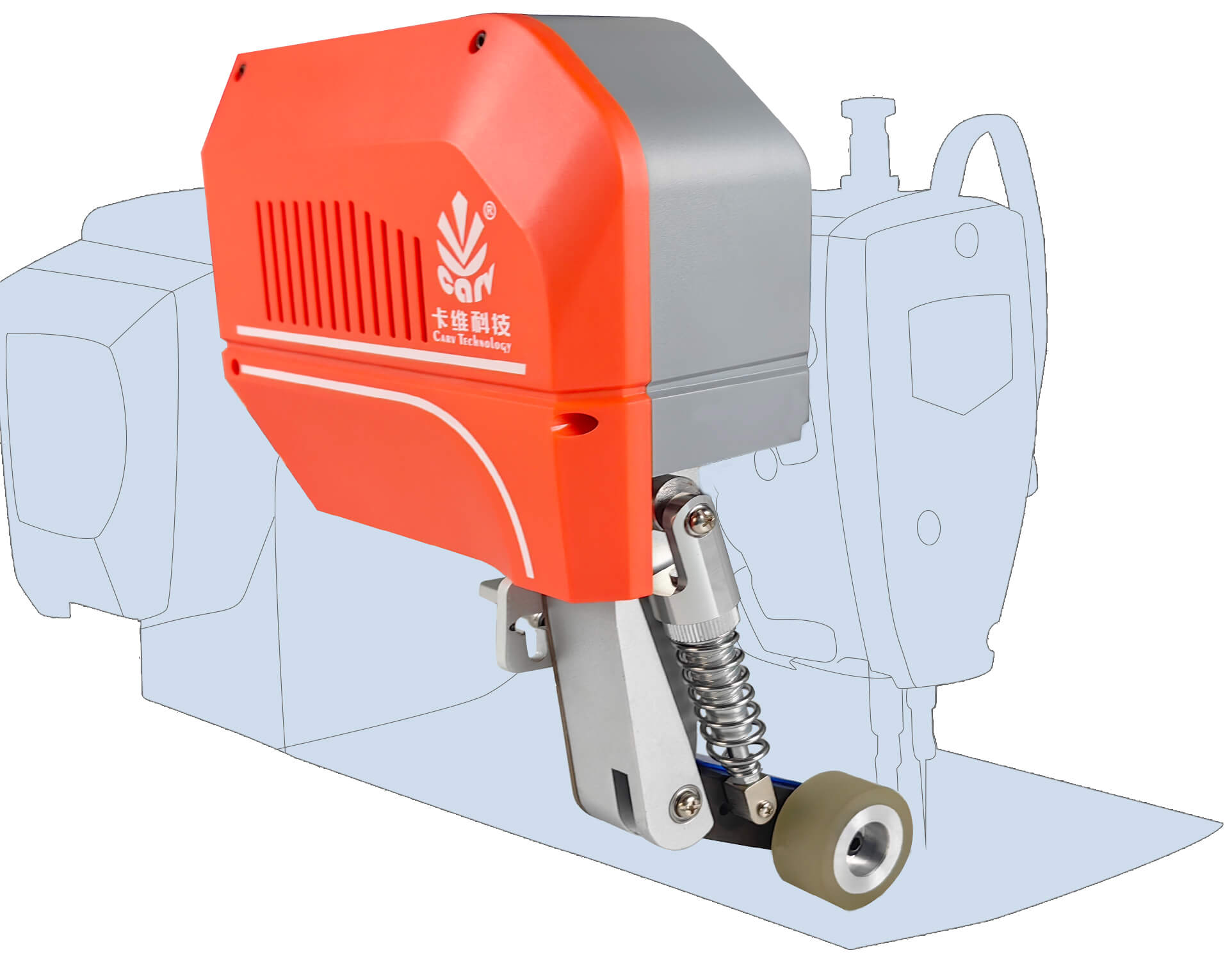

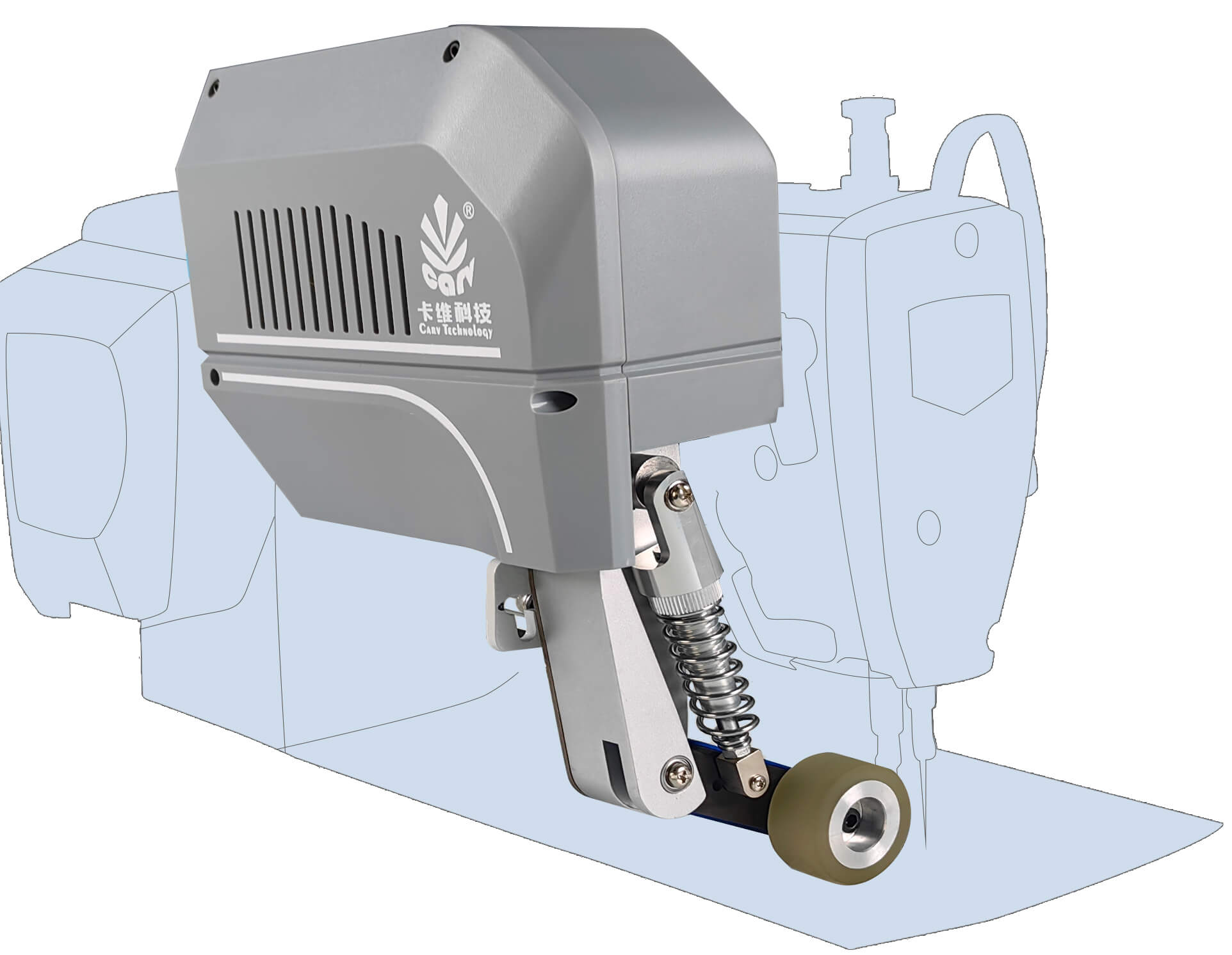

Digital Puller Series
Product Advantages
High speed and full synchronization technology of sewingmachineIndependent stepper motor lifting and lowering of the trolley, convenient, simple and durable.
The shuttle can be lifted with one key without affecting the normal function of the sewing machine.
Voice navigation setting function, easier to use
The presser foot can be adjusted with one key according to the thickness of the fabric
The puller digital control integrated structure is simple,easy to install and maintain.
Product Video
Application Video

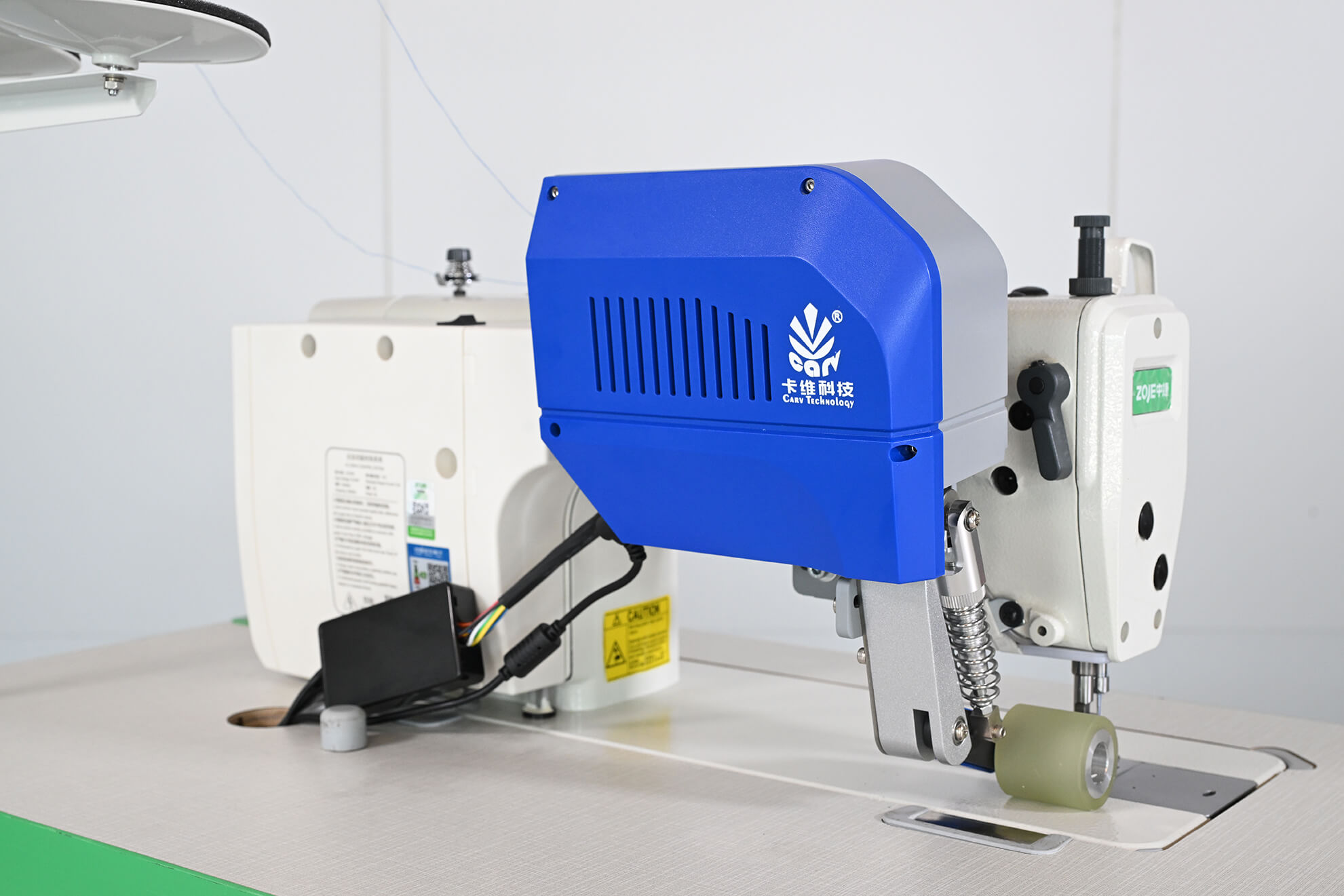

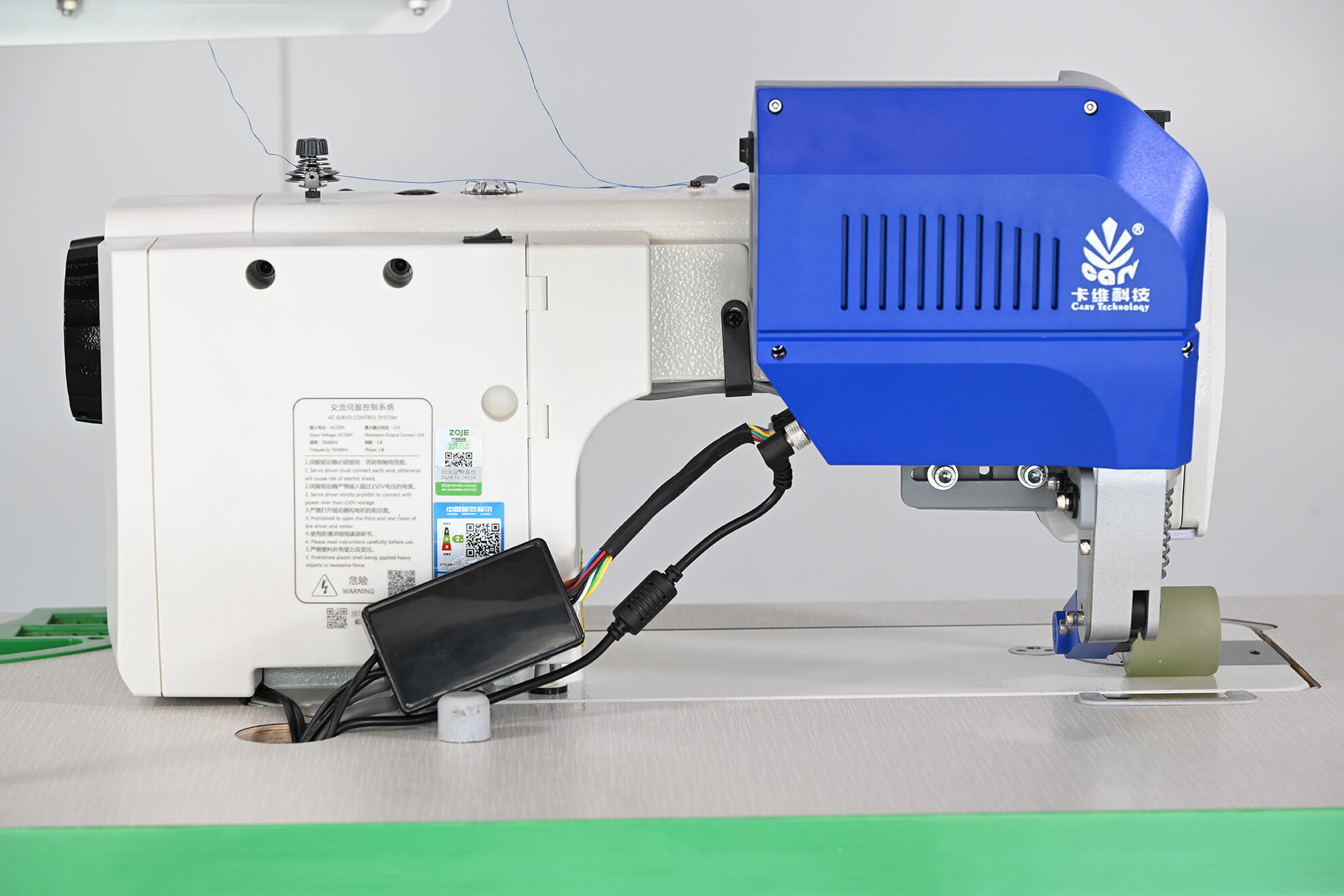

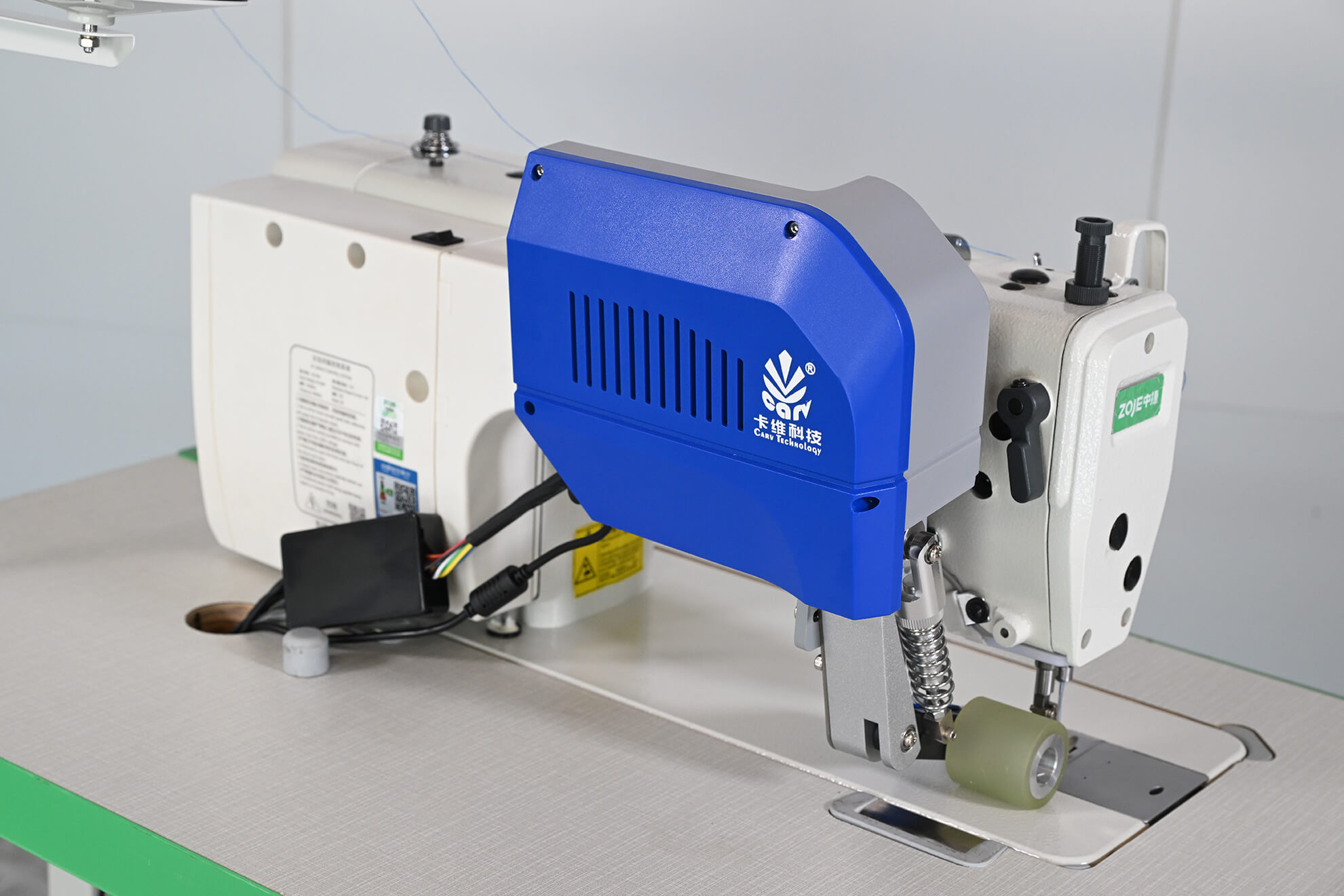

Application Scenarios
Compatible Models
Product Features

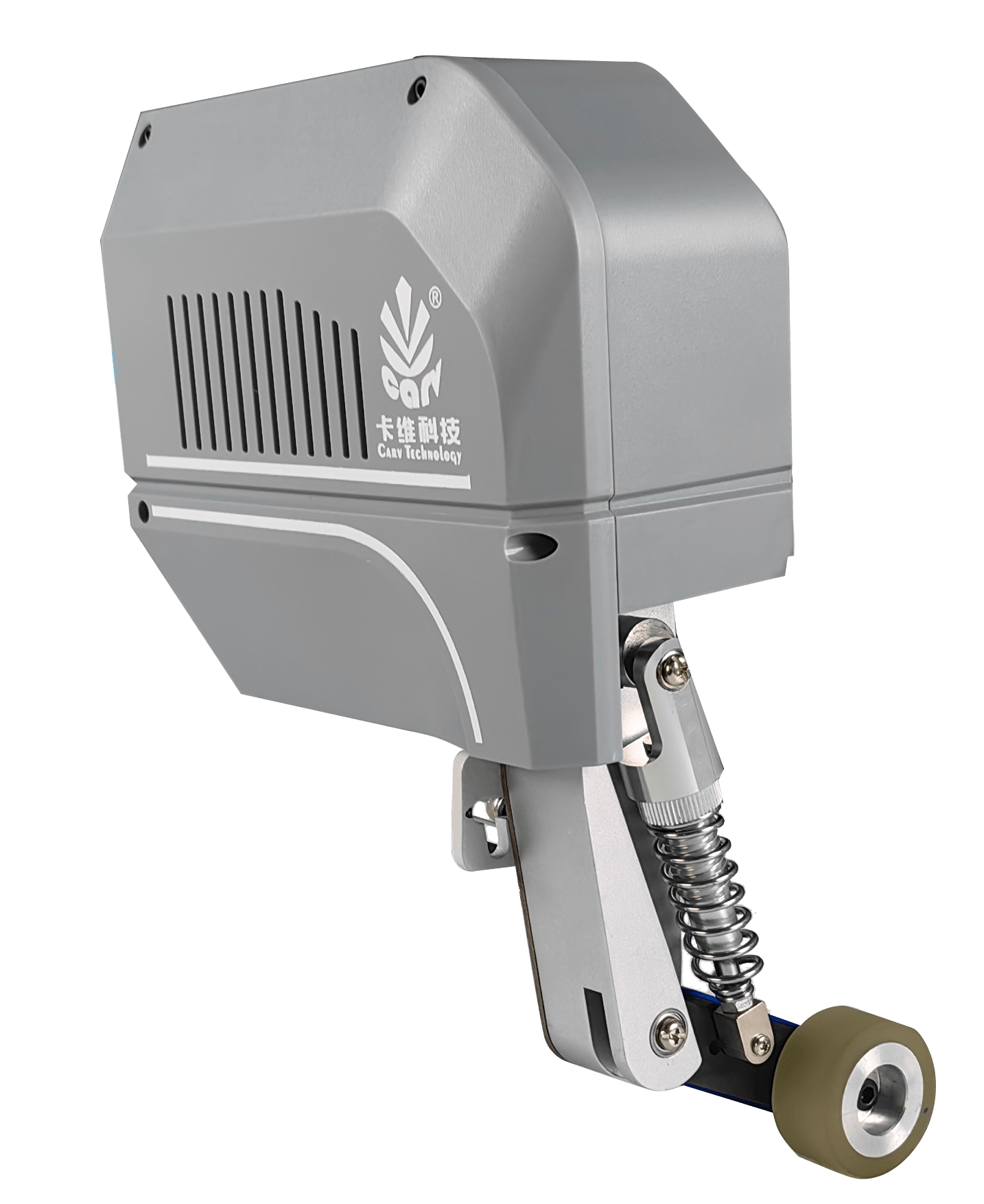

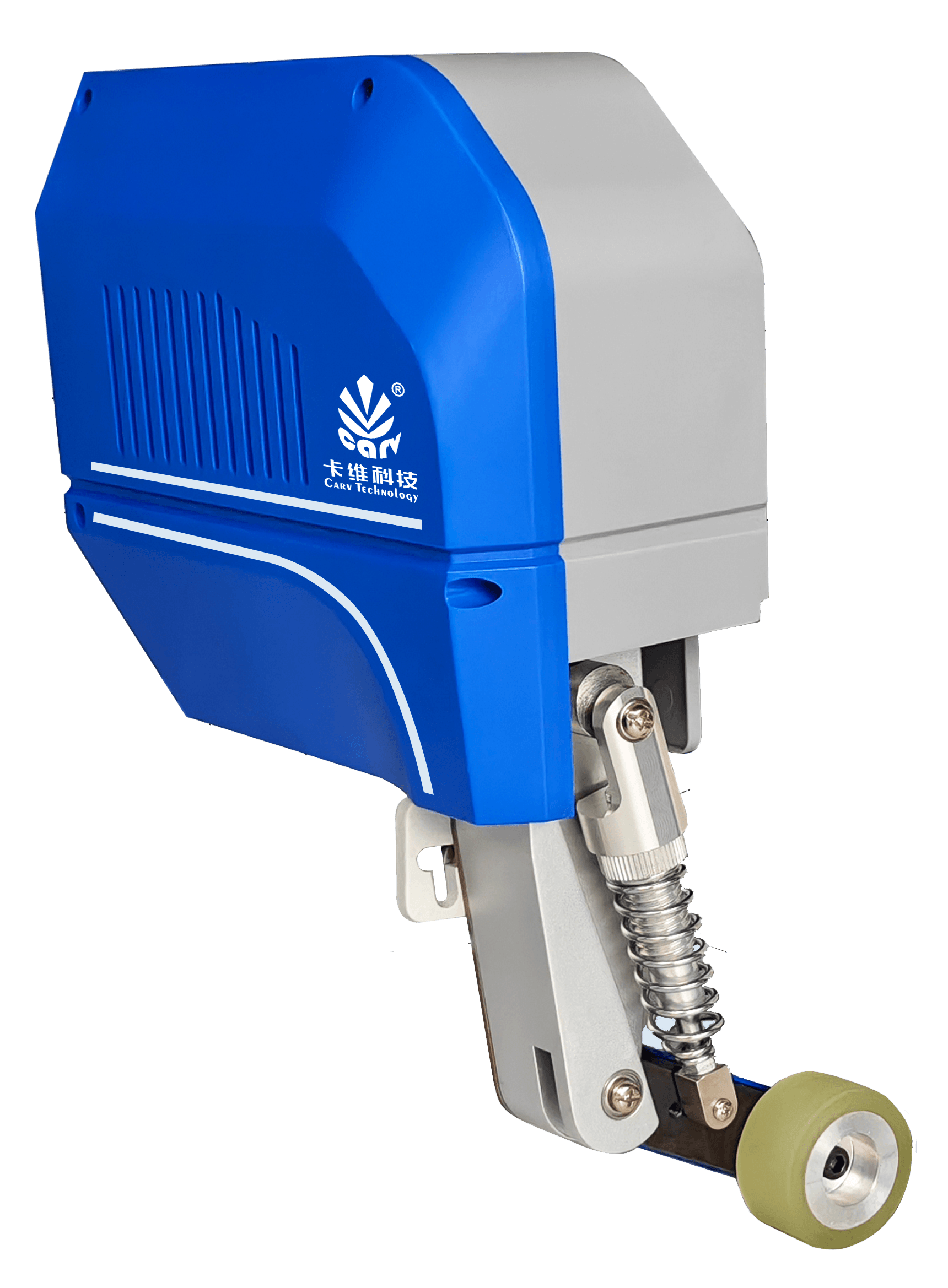

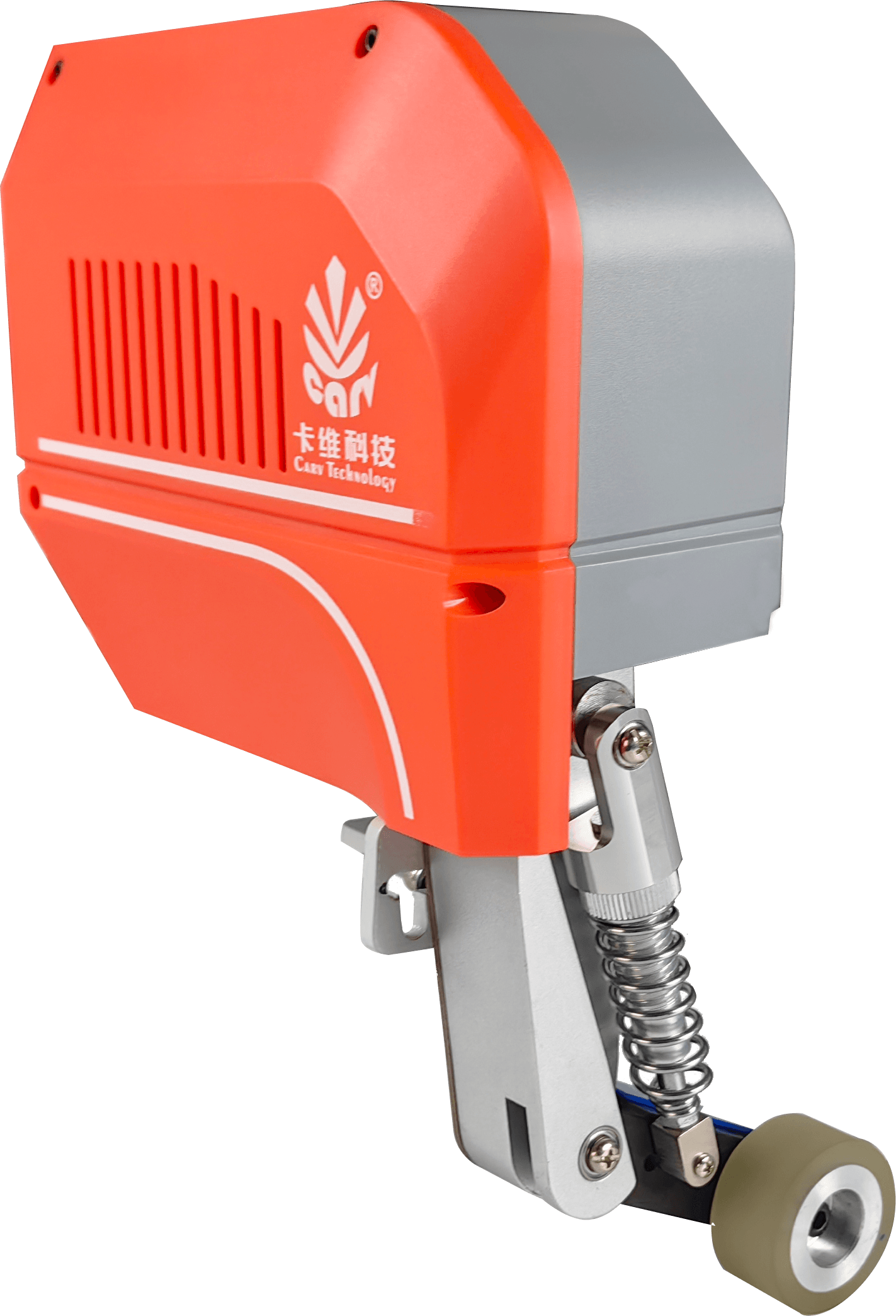

The DM series is the fifth-generation intelligent digital puller, which is highly integrated and easy to install. The single fork arm spring adjustable pressure roller can sew all kinds of thin, medium and thick fabrics. The standard large torque synchronous motor can effectively solve the problems of uneven feeding, uneven overcut, fabric slipping and upper and lower misalignment during fabric sewing, which effectively improves the quality and efficiency of sewing. It is suitable for (sewing and traction of fabrics such as, home textiles, furniture, and bags), and is compatible with (all lockstitch sewing machine and double needle machine on the market)

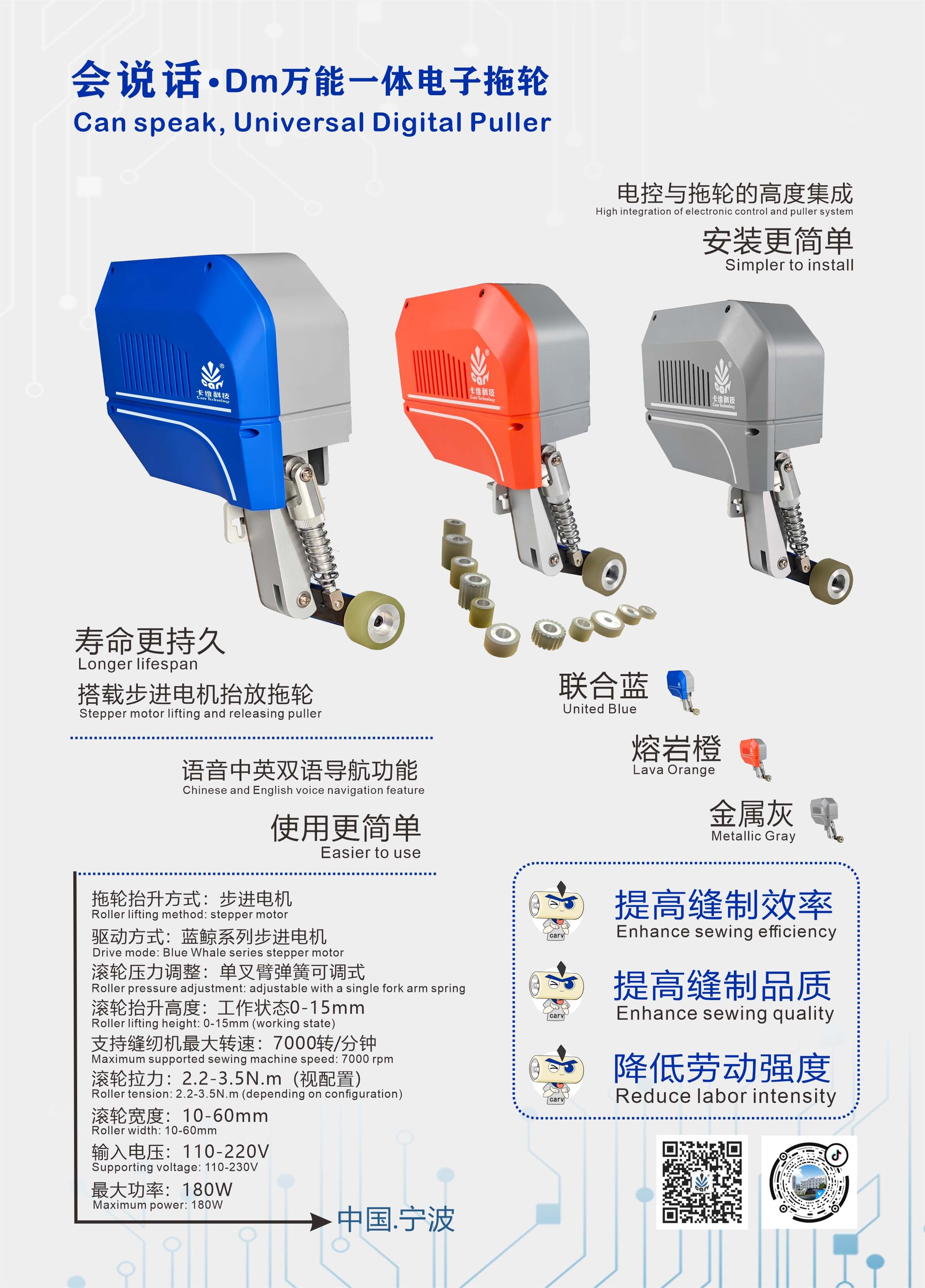

Puller model | Drive mode | Lifting method | Pressure adjustment | Lifting height | Roller stitch length | Maximum speed | Roller Width | Roller pull tension | Voltage/Power |
| DMW / P | Independent step motor | Motor lifting method(Step) | Single fork arm spring adjustable type | ≤15mm working state | ≤10mm | 7000 RPM | 10-60mm | ≤3Nm (Depending on configuration) | 110-240V/160W |
-
DM digital puller Installation Manual
Click to download
language Version size release date Chinese V1.00 1.21MB 2026-07-02 -
DM digital puller Installation Manual 2024 (Generic)
Click to download
language Version size release date Chinese V1.00 1.20MB 2026-07-02
