Digital Puller Series

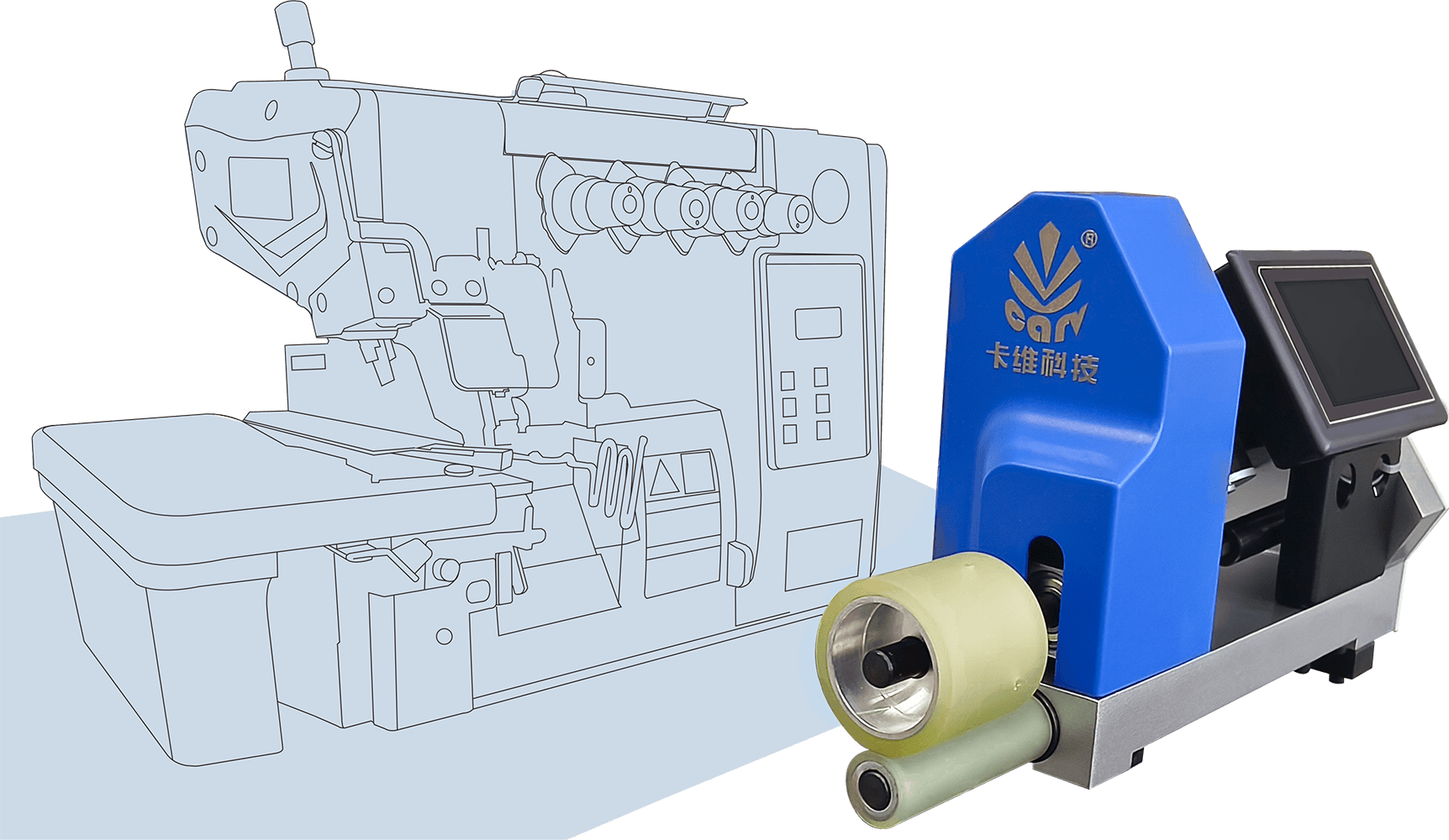

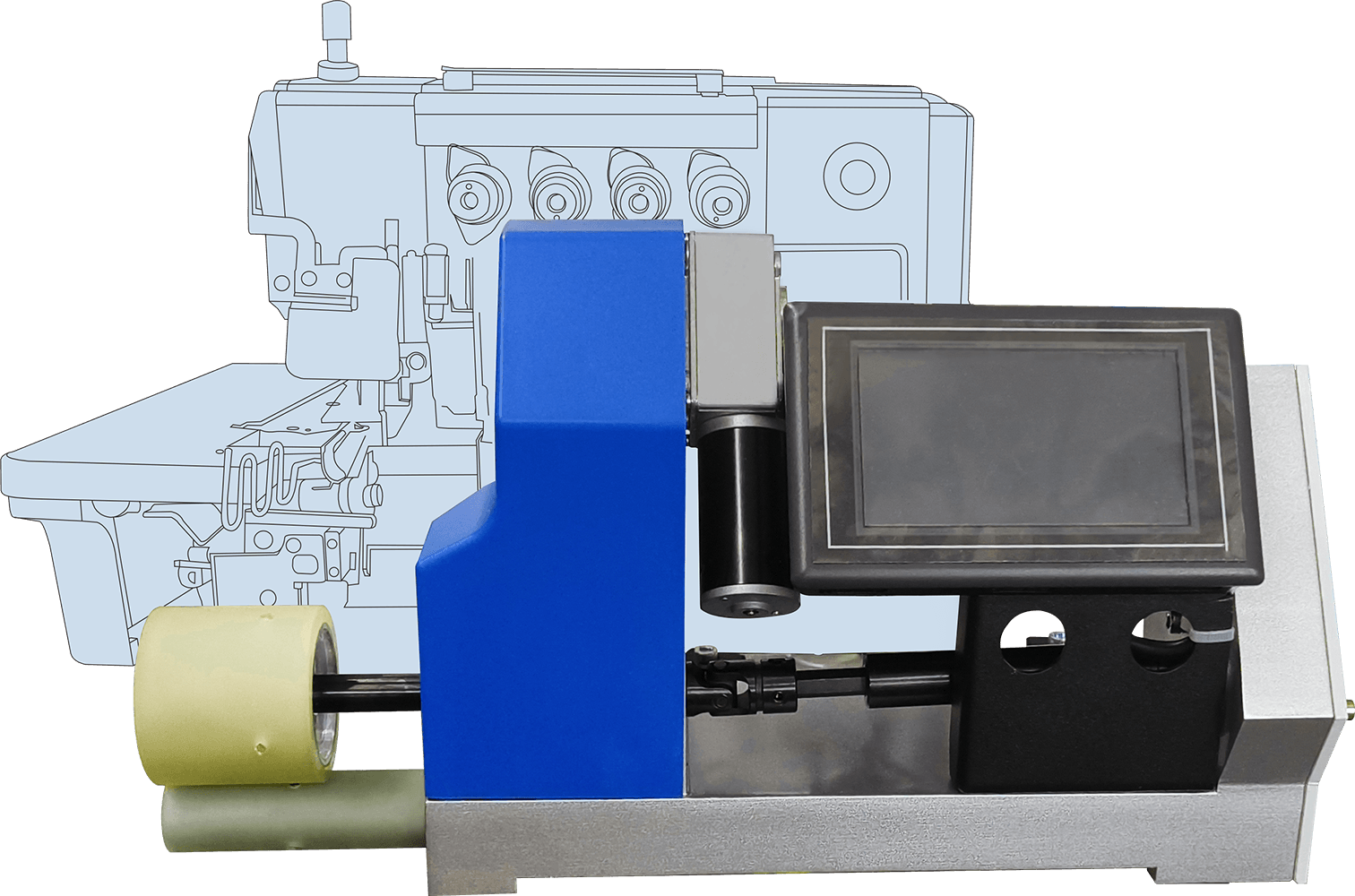

MDO Front-mounted Counter-pull Intellgent Digital Puller

Product Advantages

High speed and full synchronization technology of sewing machine
Adopting high torque servo motor, separate power for upper and lower wheels
One-touch start/stop with automatic shutdown upon thread breskage or fabic tear

4.5 inch LED screen, human-machine interface

Professional grade autonomous control system, stable and reliable

Product Details

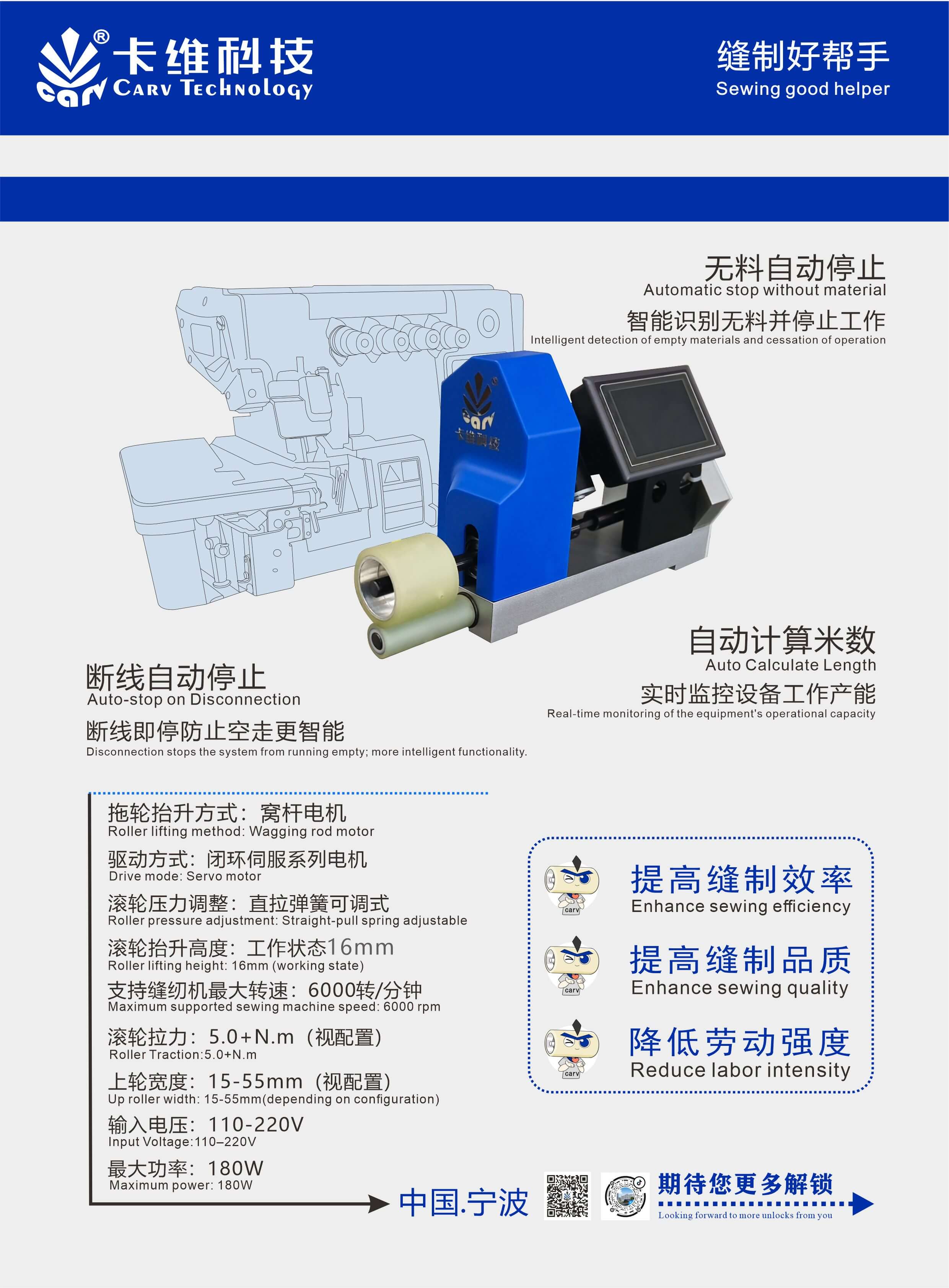

Product Manual
Installation Video
Product Details

Product Video

📹 MDF dual-drive front-mounted mopping roller

Application Video

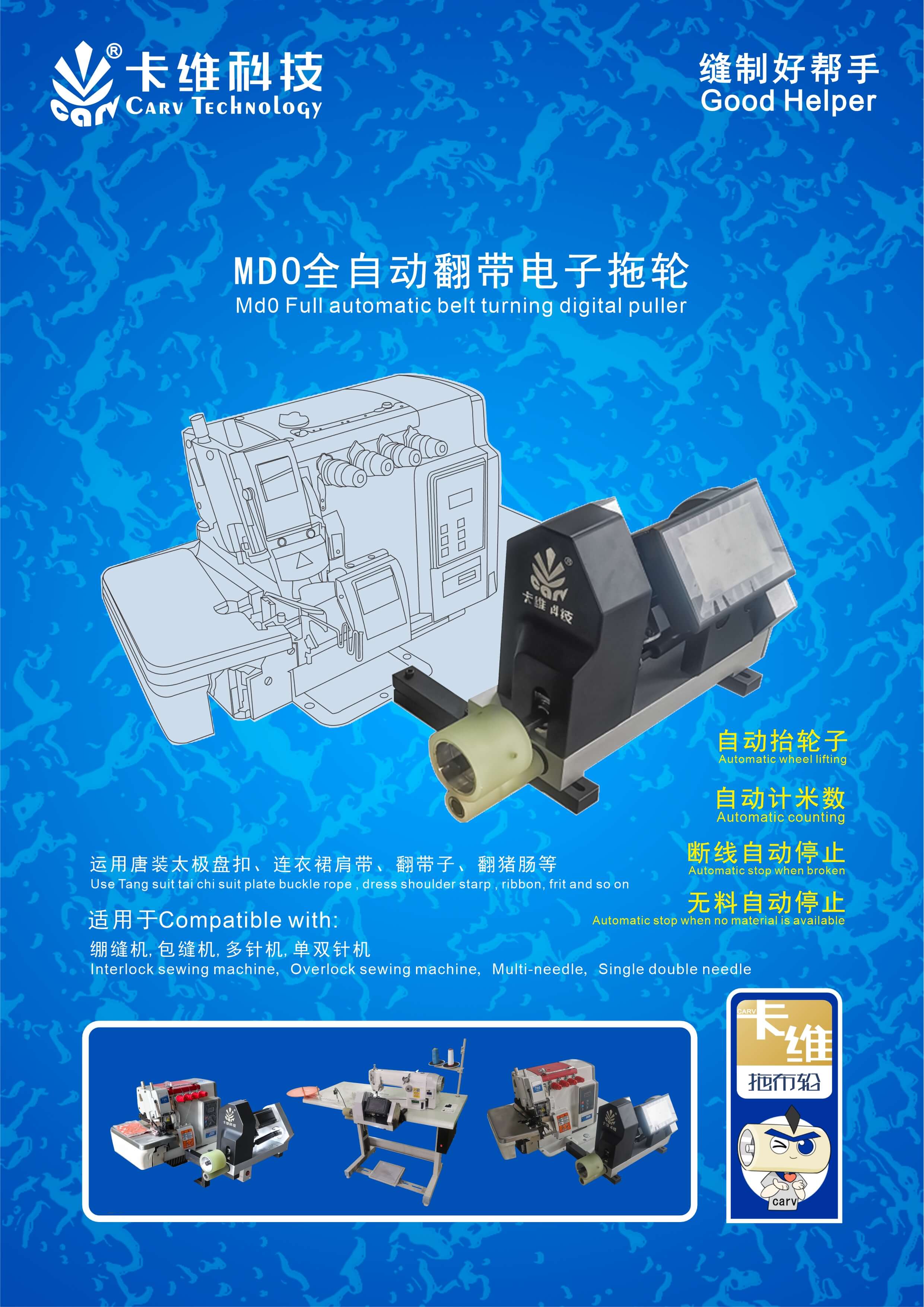

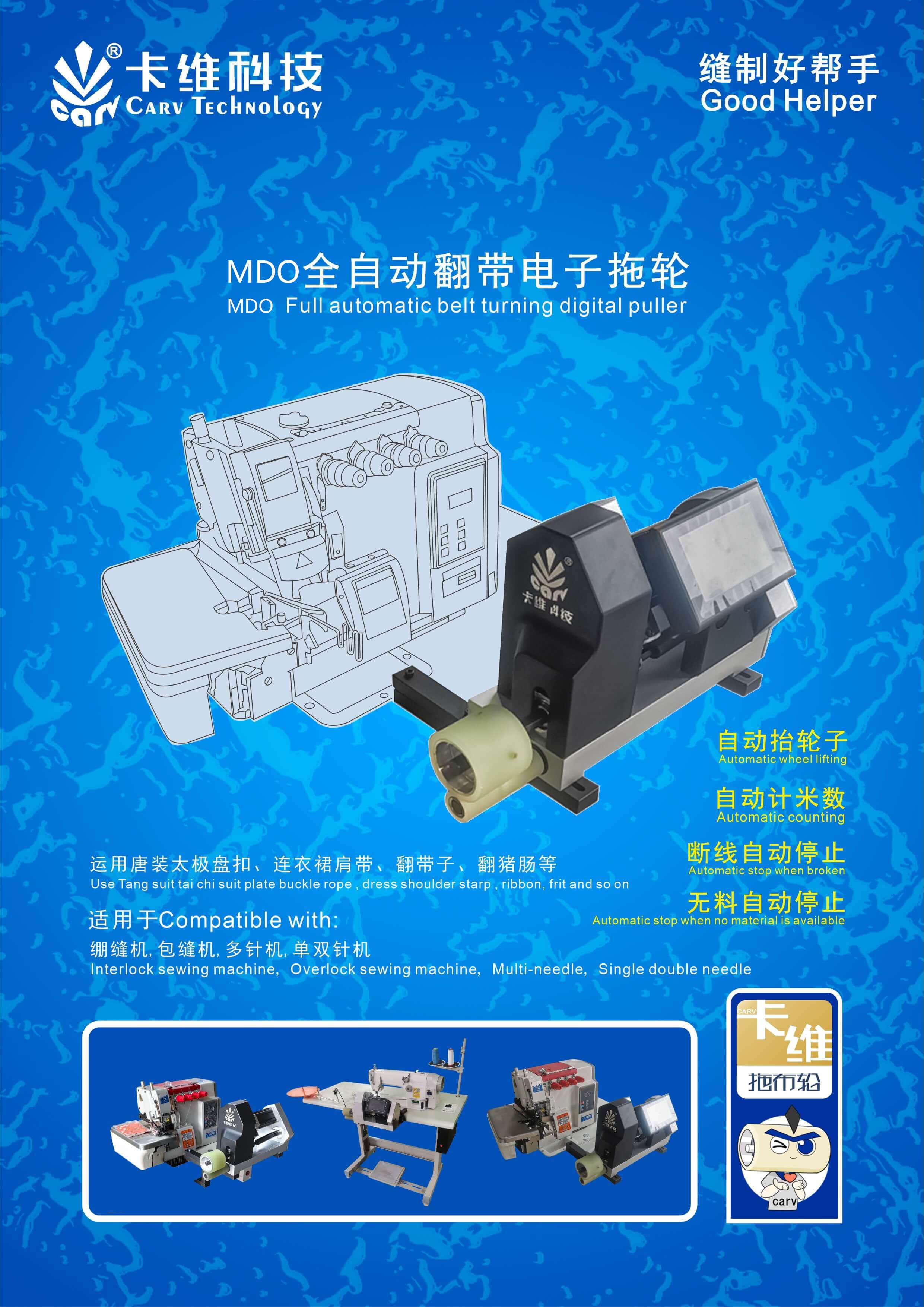

📹 MDO Fully Automatic digital puller with Tape-Flipping Capability
📹 Automatic strip-turning machine with heat-setting function

Application Scenarios

Suitable for frog closures on Tang-style Tai Chi outfits, dress shoulder straps, lingerie straps, trouser belt loops, etc.
MDO Front-mounted Counter-pull Intellgent Digital Puller
MDO Front-mounted Counter-pull Intellgent Digital Puller
MDO Front-mounted Counter-pull Intellgent Digital Puller
MDO Front-mounted Counter-pull Intellgent Digital Puller

Compatible Models

single and double needle sewing machine, interlock sewing machine, overlock sewing machine, multi-needle machine

Product Features

The MDO front pull-back intelligent digital puller adopts a large torque servo motor with upper and lower wheels driven independently, and features automatic start/stop functions, with optional automatic stop upon thread break, automatic stop when material runs out, and automatic meter counting. It is applied to automatic belt pulling, automatic sewing, and automatic strip turning, eliminating manual sewing and strip turning operations, and improving sewing quality and efficiency. Suitable for Tang suit, Tai Chi suit plate buckle ropes, dress shoulder straps, underwear straps, pants loops, etc. Compatible with all lockstitch sewing machines, overlock sewing machines, and interlock sewing machines on the market.
Puller model
Drive mode
Lifting method
Pressure adjustment
Lifting height
Roller stitch length
Maximum speed
Roller width
Roller pull tension
Voltage/power
MDO
Closed-loop stepper motor(serve motor optional)
Motor lifting method
Spring adjustable
≤15mm
≤12mm
7000RPM
40-60mm

≤5Nm

(depending on configuration)

110-240V/150W
