Template Digital Puller

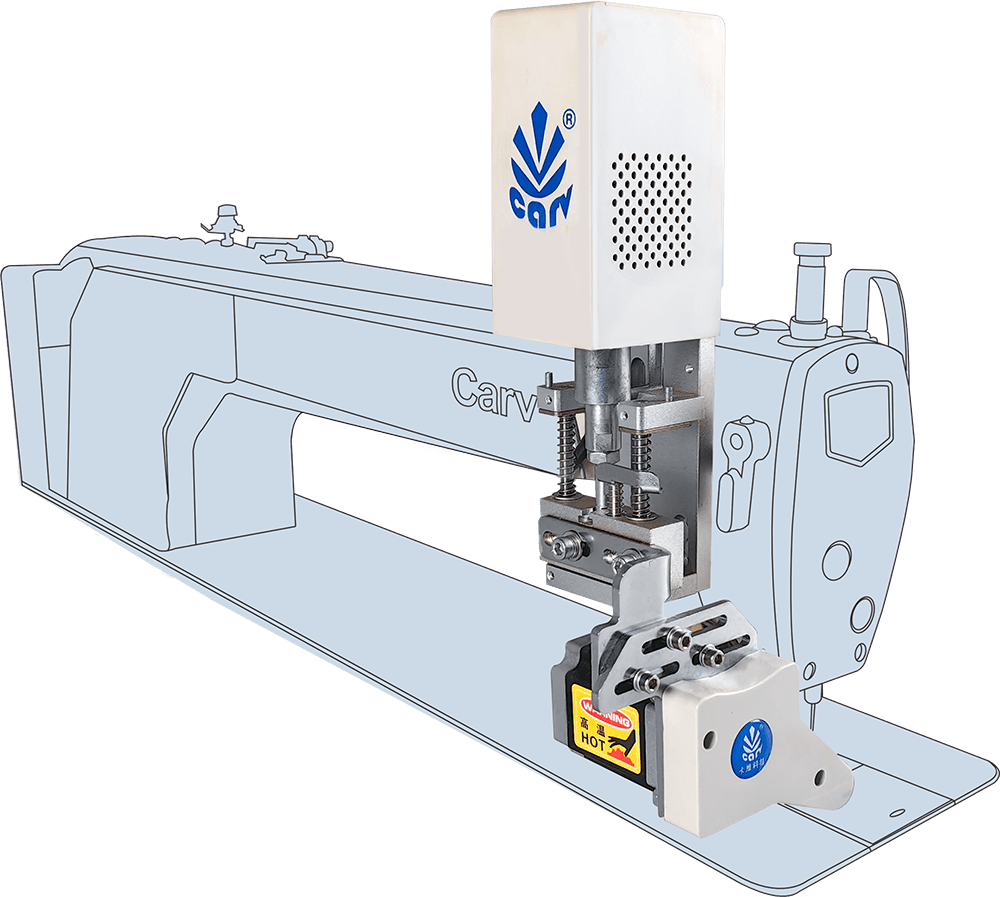

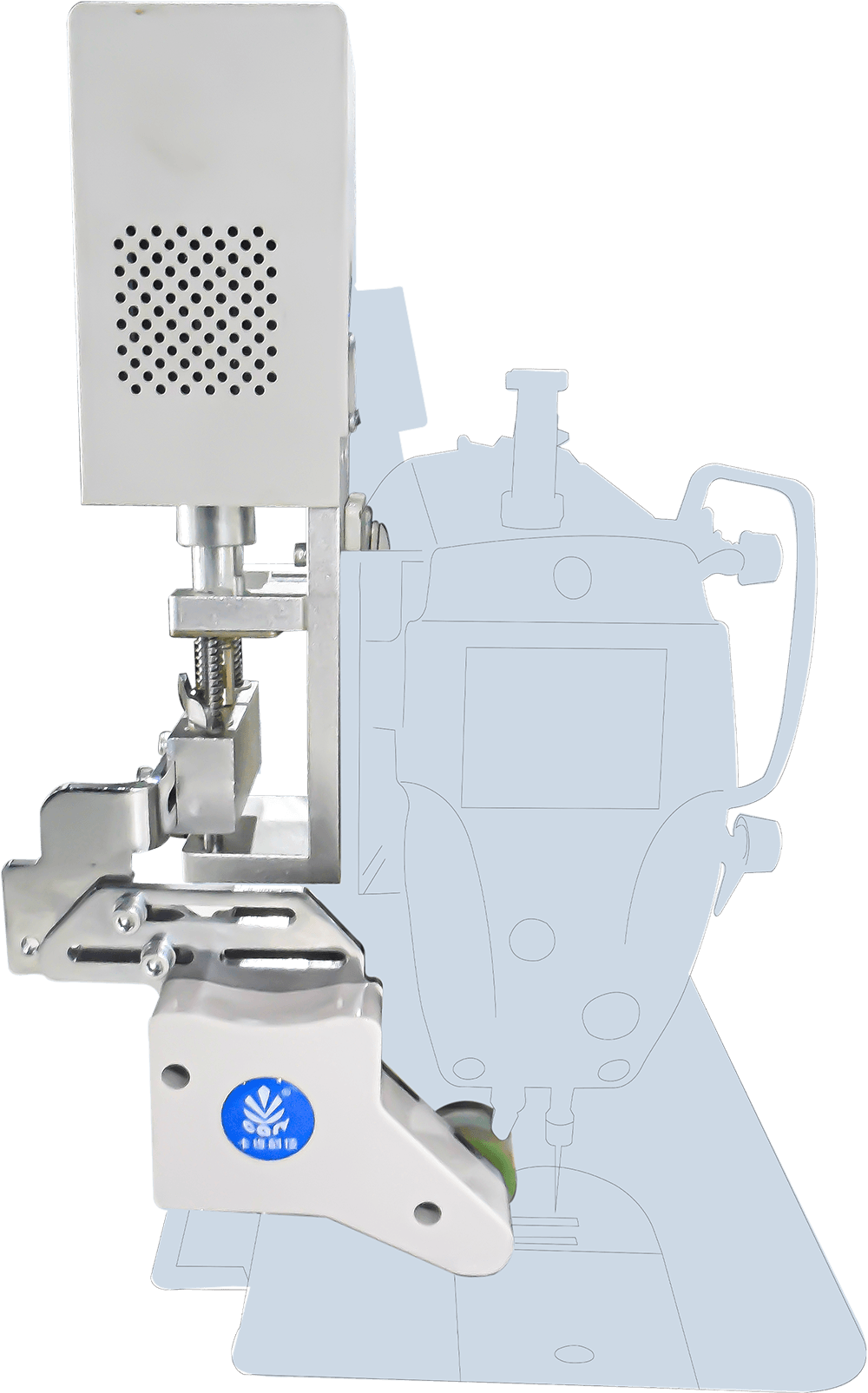

AT Electromagnetic Digital Puller

Product Advantages

Technology for perfect synchronization with the sewing machine at high speeds
Puller functions as a presser foot to enable template sewing
Puller can be lifted and positioned out of the way when not in use
Automatic presser foot lifting without the need for an air supply
Automatic back-tacking function synchronized with the sewing machine

Product Details

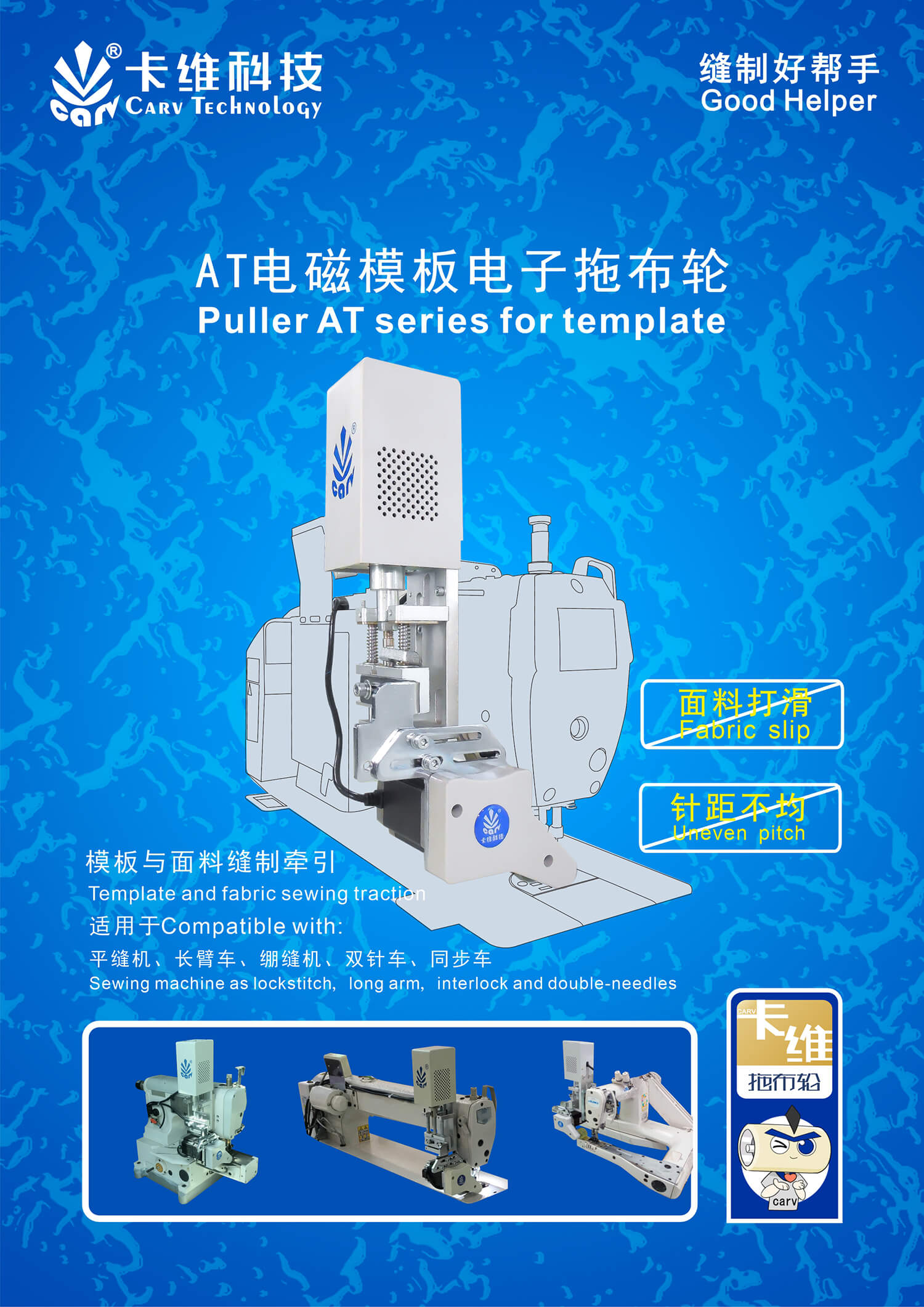

Product Manual
Installation Video
Product Details

Product Video

📹 AT Electromagnet Template digital pullerger Product Video

Compatible Models

Lockstitch machine, long-arm machine, twin-needle machine, compound-feed machine, coverstitch machine, feed-off-the-arm machine.

Product Features

The AT series electromagnetic-digital puller is an air-free device designed for template and fabric feeding. It addresses common issues in template sewing—such as uneven stitch length, high operator fatigue, and fabric puckering—thereby effectively enhancing sewing quality and efficiency while reducing the physical strain on workers. It is suitable for template and fabric sewing processes in industries such as apparel, footwear, and luggage manufacturing, and is compatible with all standard sewing machines on the market.
Model
Drive System
Lifting Method
Pressure Adjustment
Lift Height
Max. Stitch Length
Max. Speed
Roller Width
Roller Traction Force
Voltage/Power
 ATW / P / T / M /I
Independent Stepper Motor
Electromagnetic Lift
Adjustable Direct Spring Pressure≤15mm
≤12mm
6000 RPM
10-50mm
≤2.5 Nm (depending on configuration)
110-240V/160W


Product Manual
Installation Video
📹 Installation video for the new electromagnetic template digital tow-puller flatbed cart.
📹 Installation video for the digital puller on an electromagnetic clamp-stitching machine.
