Template Cutting And Milling Machine

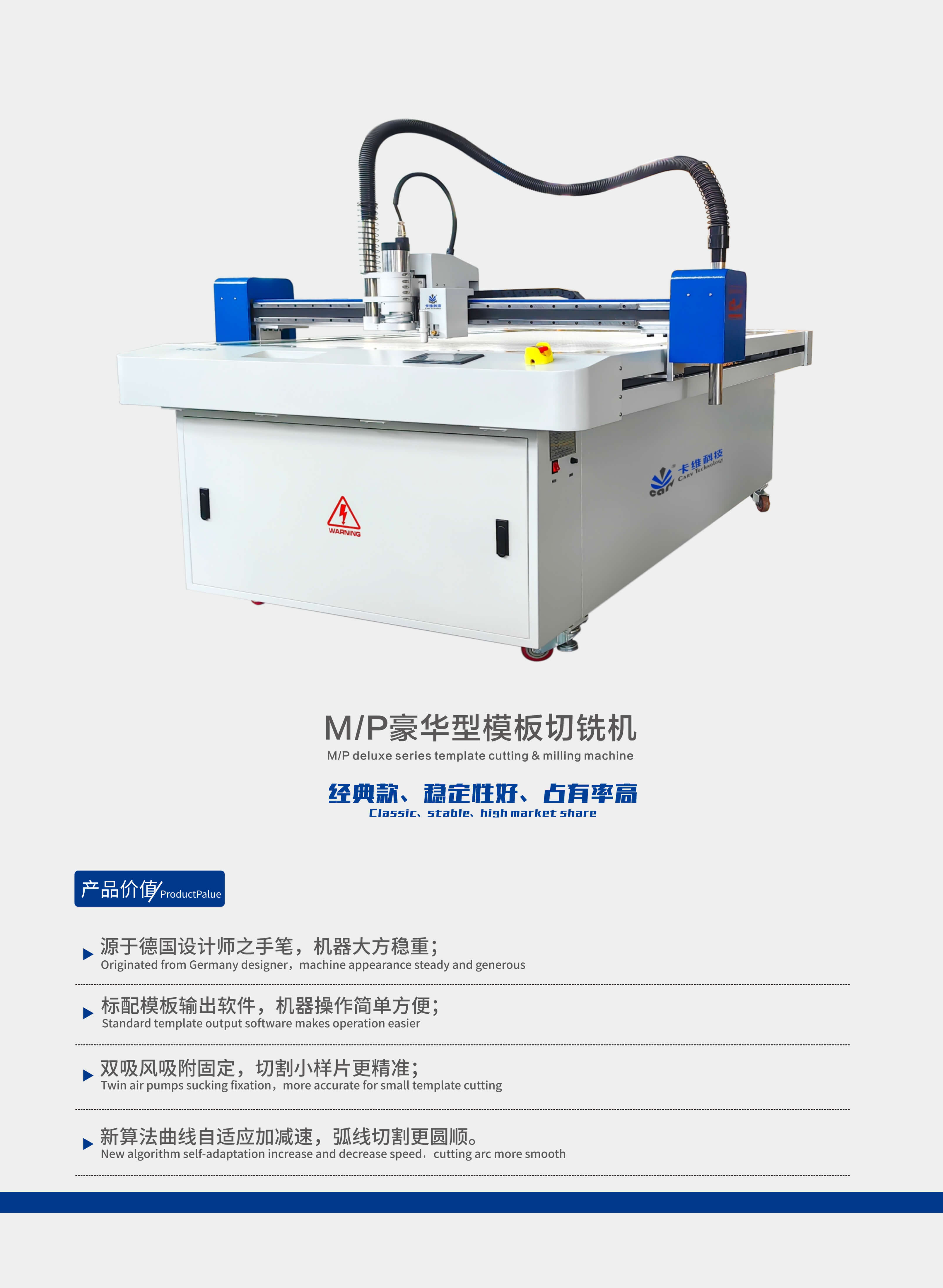

M deluxe series template cutting & milling machine
Product Advantages
Designed by German experts, the machine features a sophisticated and robust build;Comes standard with template output software for simple, user-friendly operation;
Utilizes a dual-zone vacuum hold-down system for greater precision when cutting small pattern pieces;
Employs a new algorithm for adaptive curve acceleration and deceleration, resulting in smoother arc cutting.
Product Details
Product Manual
Product Details
Compatible Models

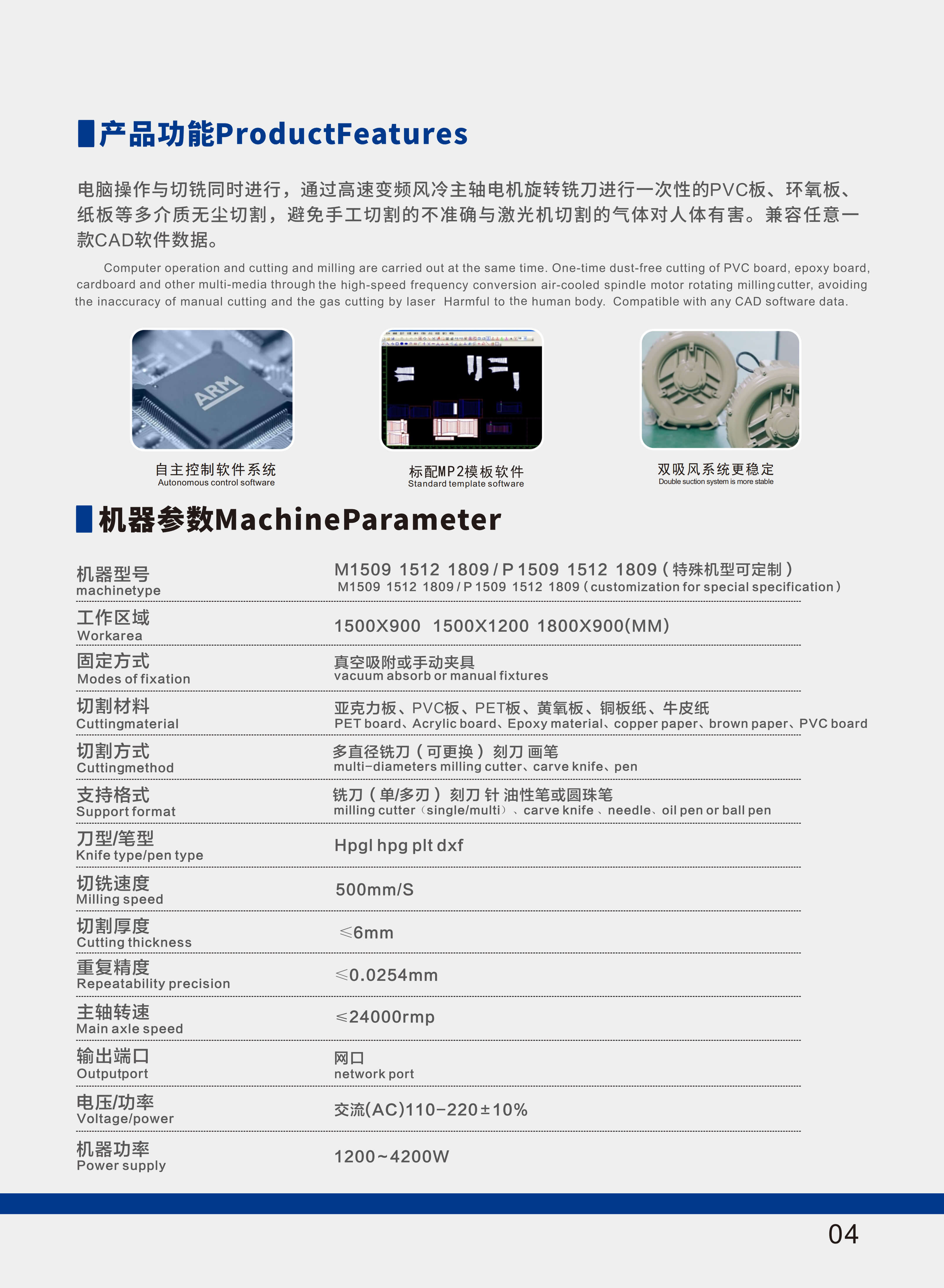

Product Features
Computer-controlled operations and material cutting occur simultaneously; a high-speed, variable-frequency, air-cooled spindle motor drives a milling cutter to perform single-pass, dust-free cutting on various materials—such as PVC boards, epoxy boards, and cardboard—thereby avoiding the inaccuracies of manual cutting and the health risks associated with harmful fumes from laser cutting. The system is compatible with data from any CAD software.| Model | Working Area | Cutting Materials | Cutting Thickness | Repeatability | Drive System | Max. Speed | Voltage/Power |
| M1509, 1512, 1809 / P1509, 1512, 1809 (Custom models available) | 1500x900, 1500x1200, 1800x900 (mm) | Acrylic, PVC, PET, Phenolic board, Coated paper, Kraft paper | ≤6mm | ≤0.0254mm | High-precision stepper (Servo optional) | 24,000 rpm | AC 220V ±10% / 1.2–4.2 kW |
Product Manual
-
CARV Deluxe Template Router Product Manual
Click to download
language Version size release date English V1.00 859KB 2026-07-17
