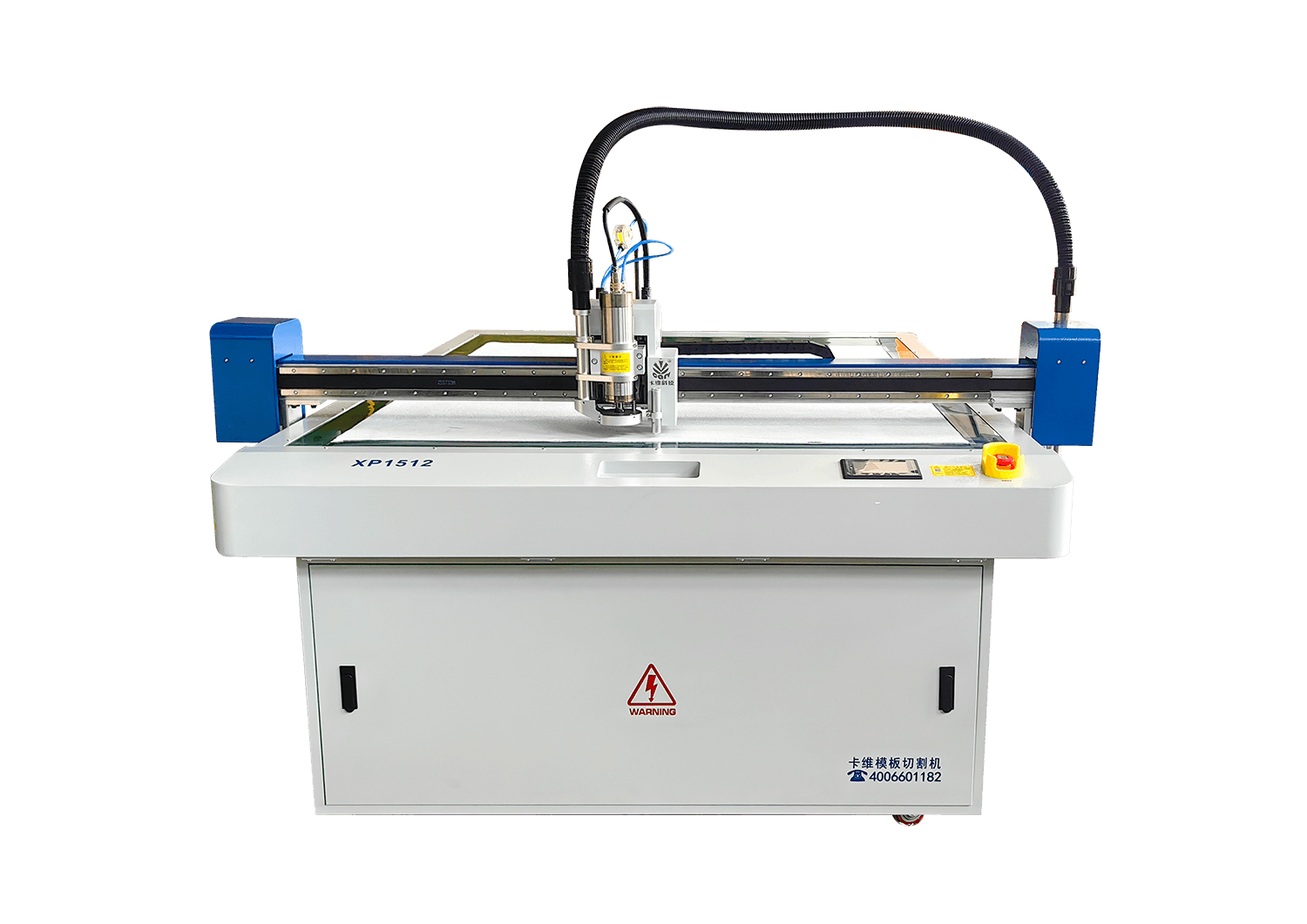

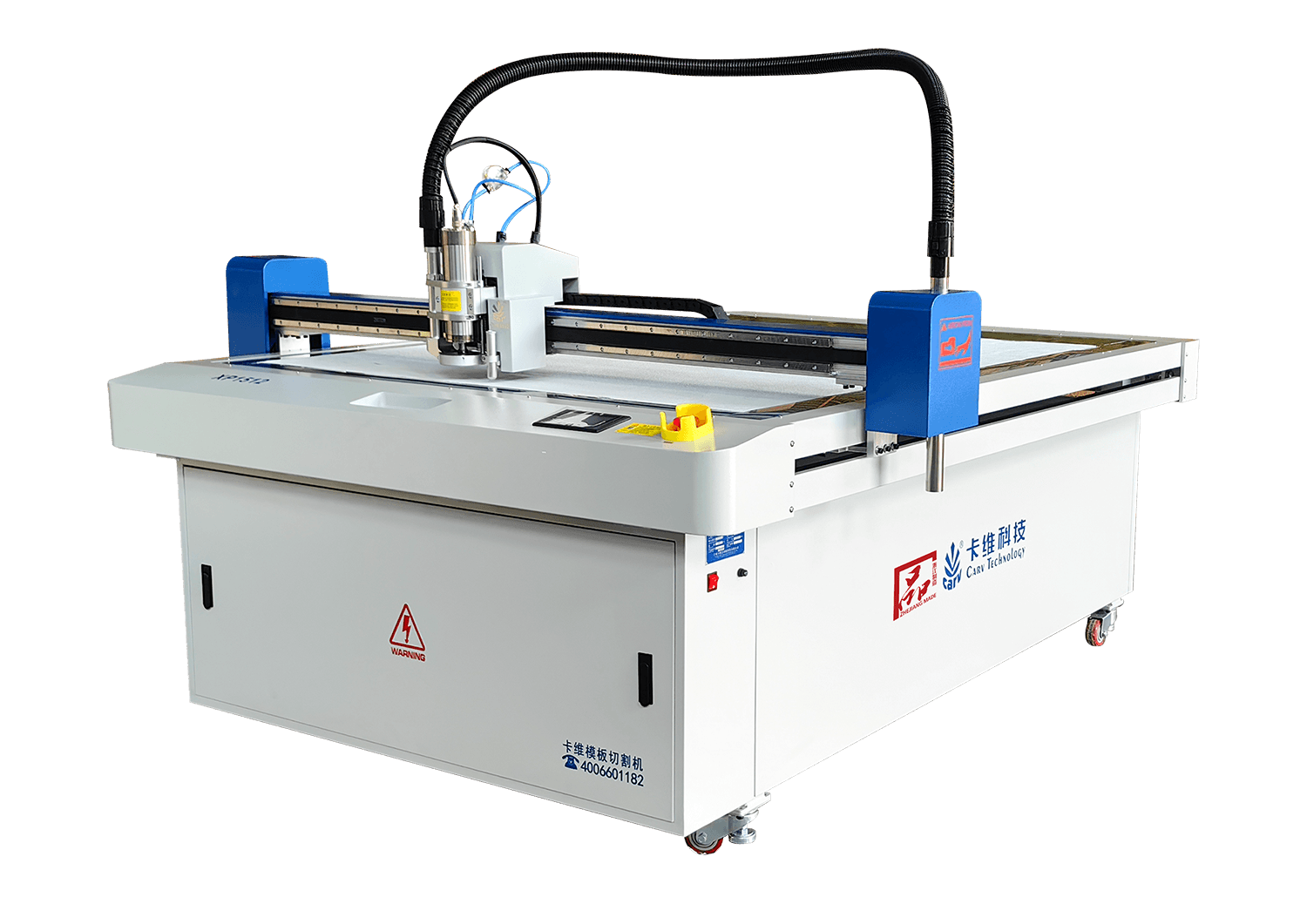

X-Series High-Speed Template Cutting and Milling Machine
X-Series High-Speed Template Cutting and Milling Machine
X-Series High-Speed Template Cutting and Milling Machine
X-Series High-Speed Template Cutting and Milling Machine
X-Series High-Speed Template Cutting and Milling Machine

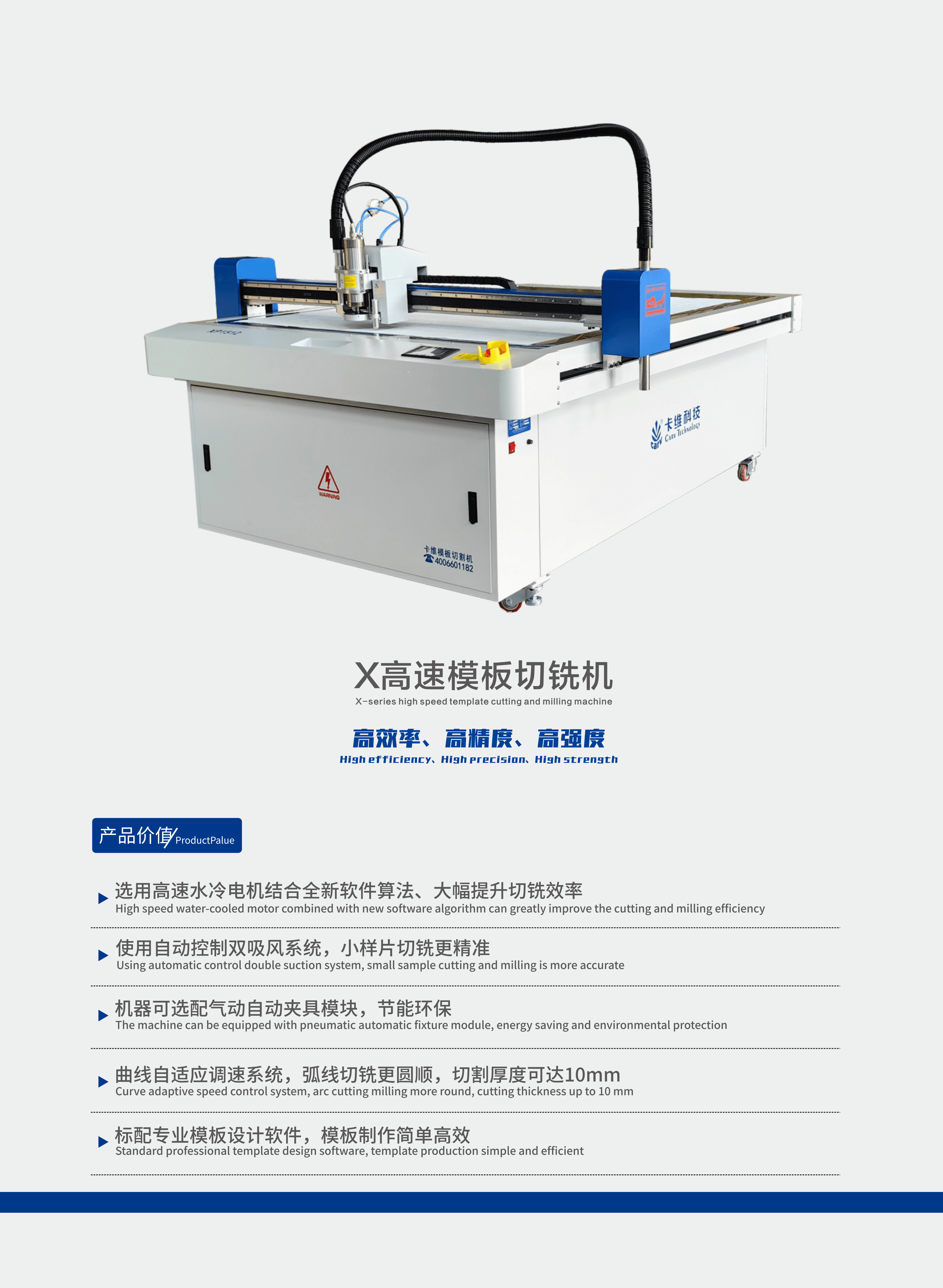

Product Advantages

Features a high-speed water-cooled motor combined with advanced software algorithms to significantly boost cutting and milling efficiency.
Utilizes an automated dual-suction system for enhanced precision when processing small sample pieces.
Optional pneumatic automatic clamping module available for energy efficiency and eco-friendliness.
Adaptive speed control system for curves ensures smoother arc cutting and milling; capable of cutting thicknesses up to 10mm.
Comes standard with professional template design software, making template creation simple and efficient.
Product Details
Product Manual
Product Details

Product Video

📹 Promotional Video for High-Speed ​​Water-Cooled Mold-Plate Milling Machine (Chinese)
📹 High-Speed ​​Water-Cooled Die-Face Cutter/Miller
📹 X-Series High-Speed ​​Template Cutting and Milling Machine Demonstration Video

Application Video

📹 Video of High-Speed ​​Water-Cooled Template Cutting and Milling Machine in Operation

Compatible Models

Boasts strong compatibility and integrates with any CAD software system on the market.

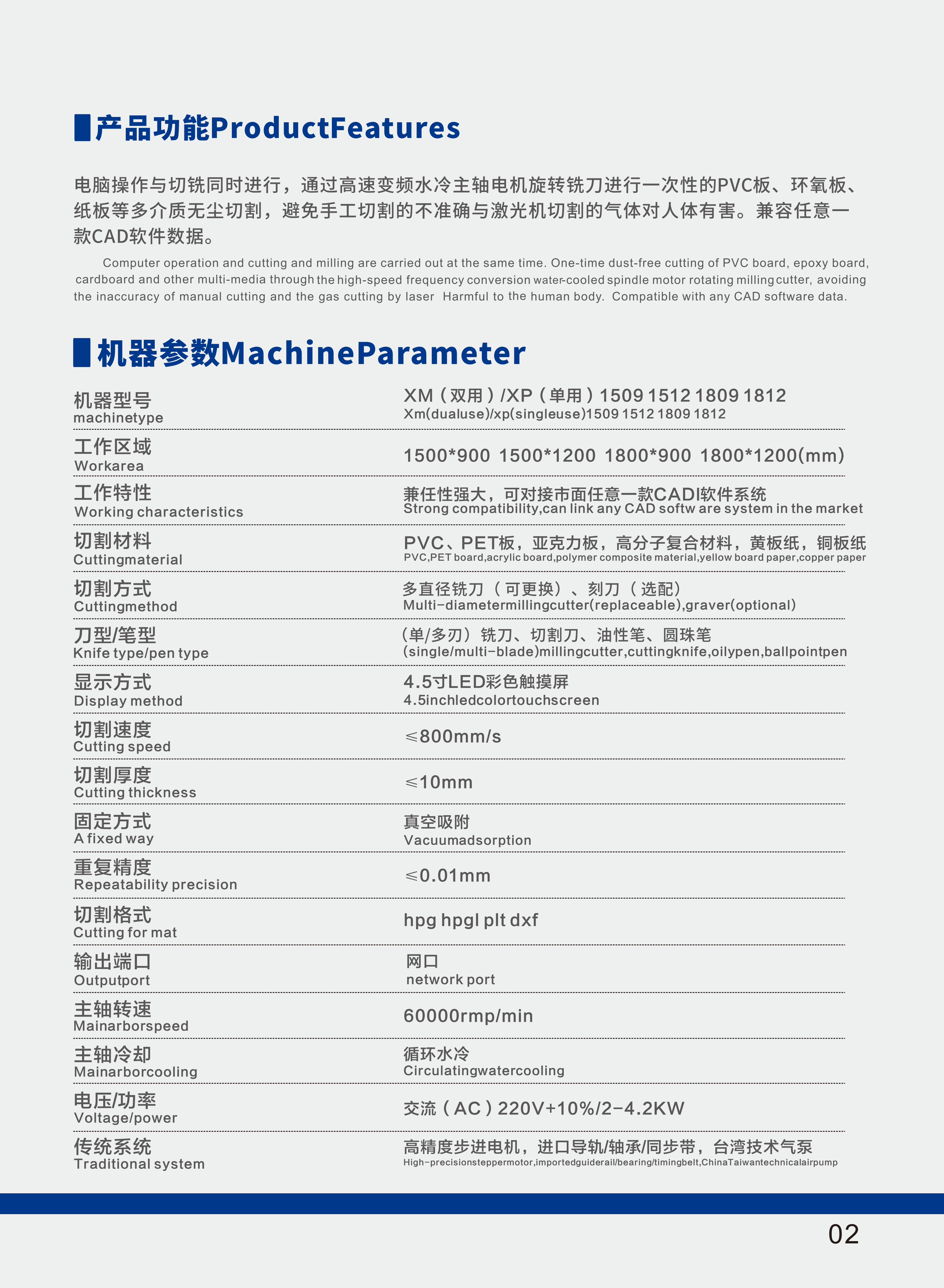

Product Features

Computer-controlled operations and cutting/milling occur simultaneously. A high-speed, variable-frequency, water-cooled spindle motor drives the milling cutter to perform single-pass, dust-free cutting on various materials—such as PVC boards, epoxy boards, and cardboard—thereby avoiding the inaccuracies of manual cutting and the health risks associated with the fumes produced by laser cutters. The system is compatible with data from any CAD software.

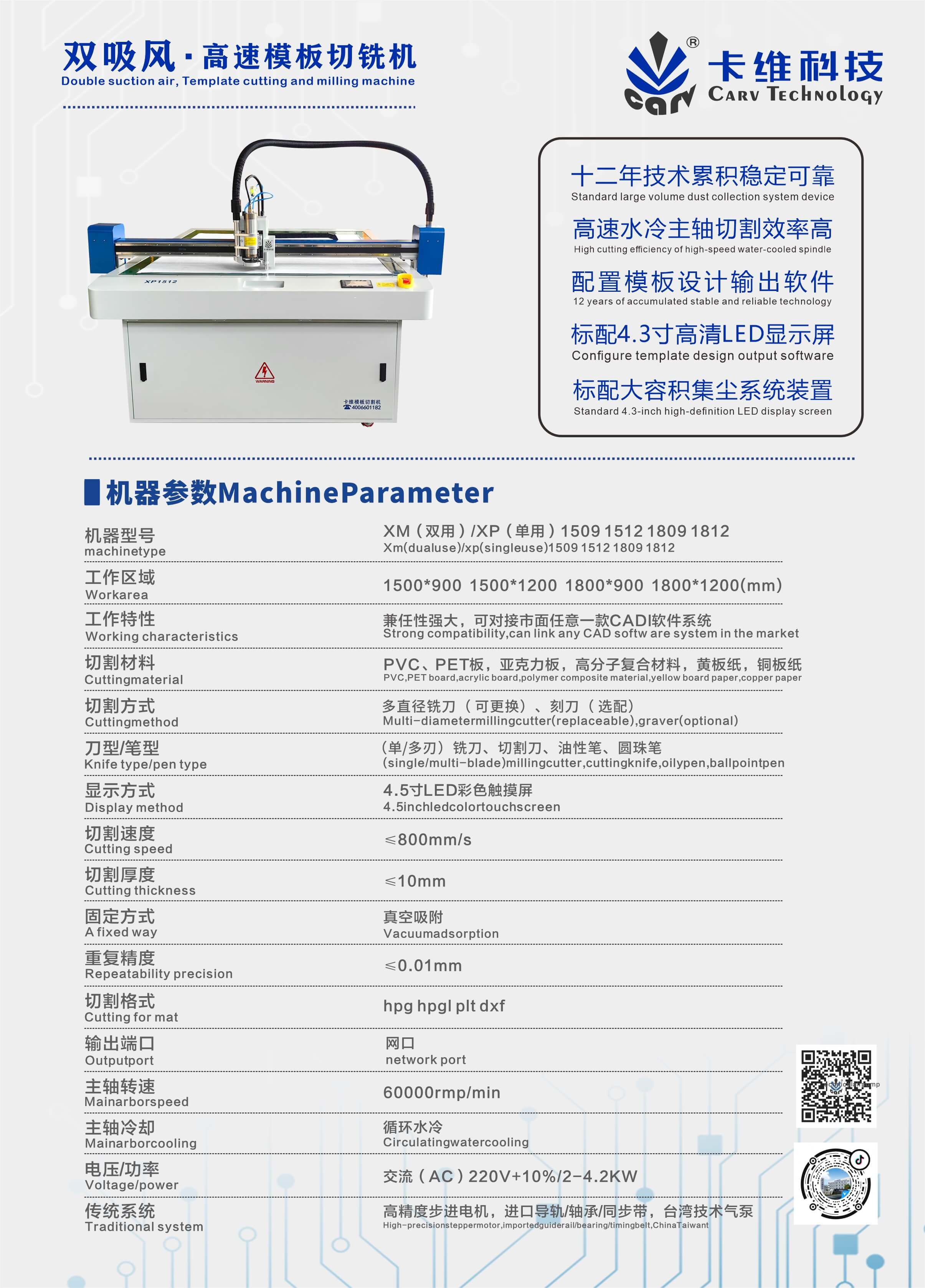

ModelWorking Area
Cutting Materials
Cutting Thickness
Repeatability
Drive System
Max. Speed
Voltage/Power
XM (Dual-purpose) / XP (Single-purpose) 1509, 1512, 1809, 1812
1500×900, 1500×1200, 1800×900, 1800×1200 (mm)
Acrylic sheet, PVC sheet, PET sheet, Phenolic board, Coated paper, Kraft paper
≤6mm
≤0.0254mm
High-precision stepper (Servo optional)
24,000 rpm
AC 220V ±10% / 1.2–4.2 kW
