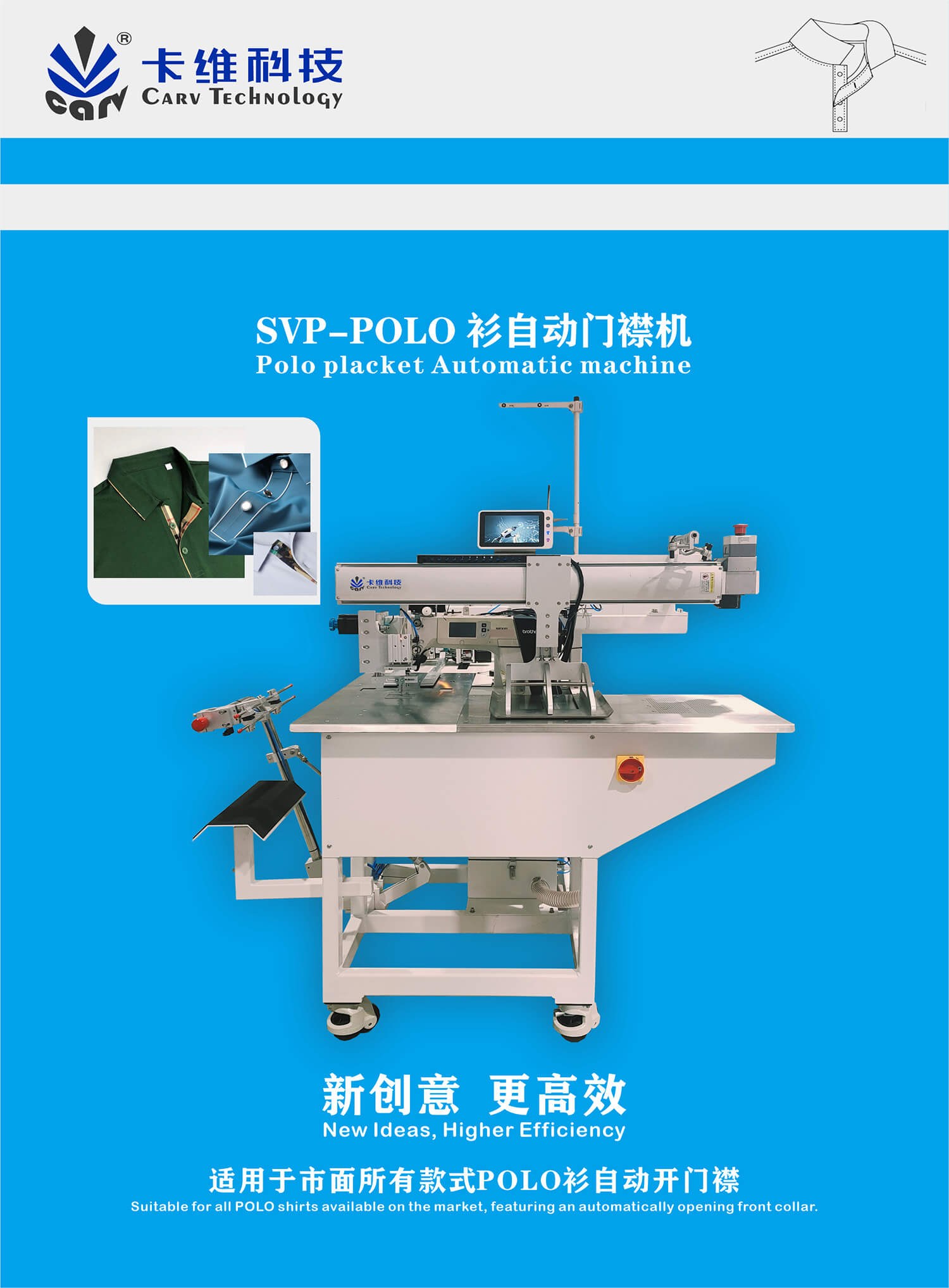

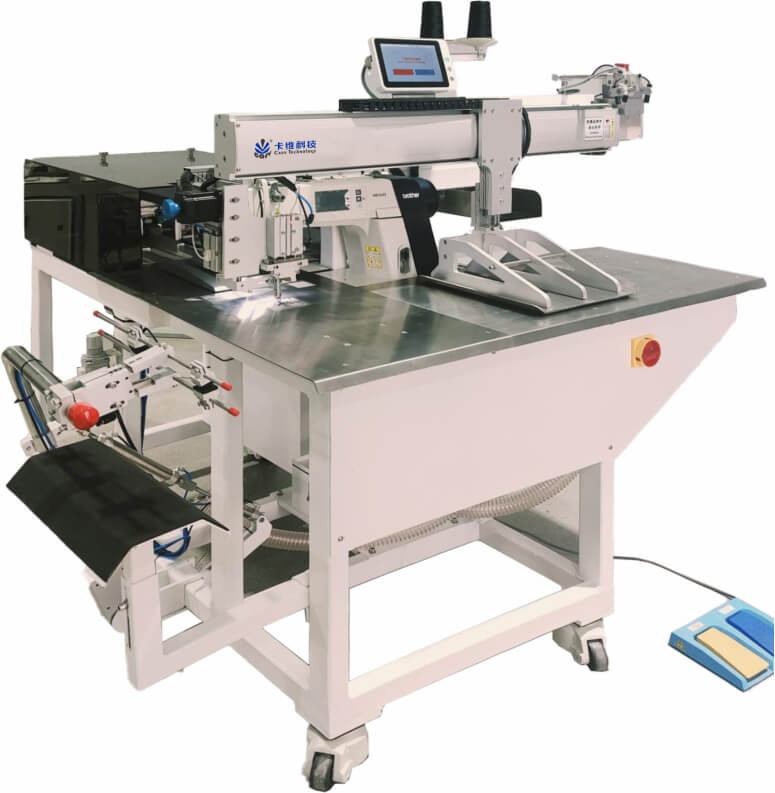

Polo placket Automatic machine

Product Advantages

Automated workflow: Laser-guided material positioning, sewing, notching, and unloading are completed in a single process.
80% increase in efficiency; high quality standards and consistent results.

Product Details

Application Video

📹 Automatic Placket Machine

Compatible Models

Suitable for the automatic placket opening of all styles of polo shirts on the market.

Product Features

1. Equipped with a Brother sewing head, offering stable, reliable mechanical performance and a low failure rate;
2. Features user-friendly software with quick-access functions and a variety of selectable sewing patterns;
3. High level of automation; the entire process—from material feeding, precise positioning, and sewing to final unloading—is fully automated;
4. Delivers precise stitching and neat, attractive seams; supports the installation of single, double, or triangular cutters to accommodate plackets of various widths.

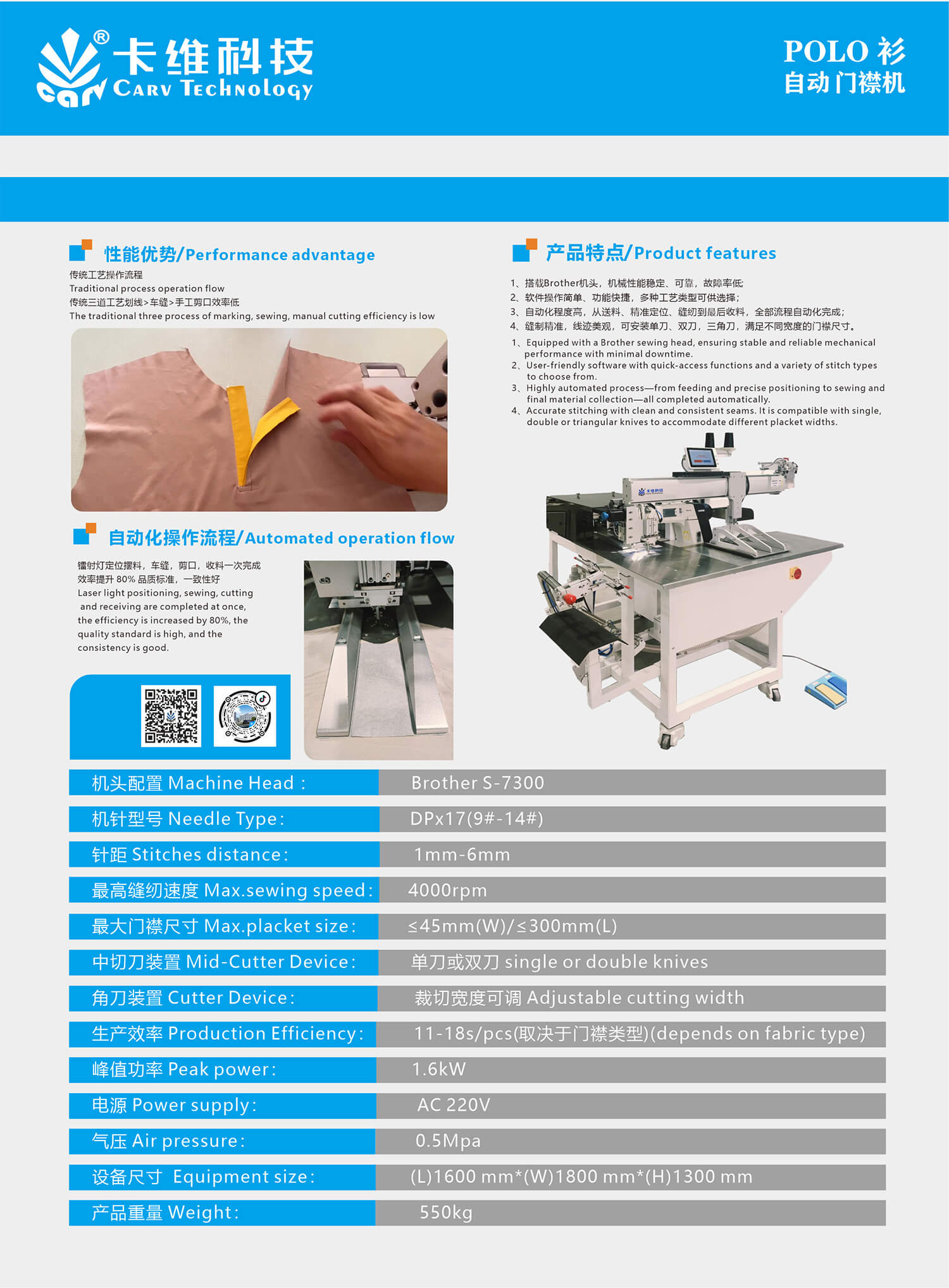

Model	Sewing Head Configuration	Stitch Length	Max. Sewing Speed	Production Efficiency	Air Pressure	Machine Dimensions	Weight	Working Area	Cutting Method	Voltage/Power
DPx17 (9#-14#)	Brother S-7300	1mm-6mm	4000 rpm	11-18s/pc (depending on placket type)	0.5 MPa	(L)1600 mm x (W)1800 mm x (H)1300 mm	550 kg	≤45mm (W) / ≤300mm (L)	Single or Double Knife	1.6 kW
